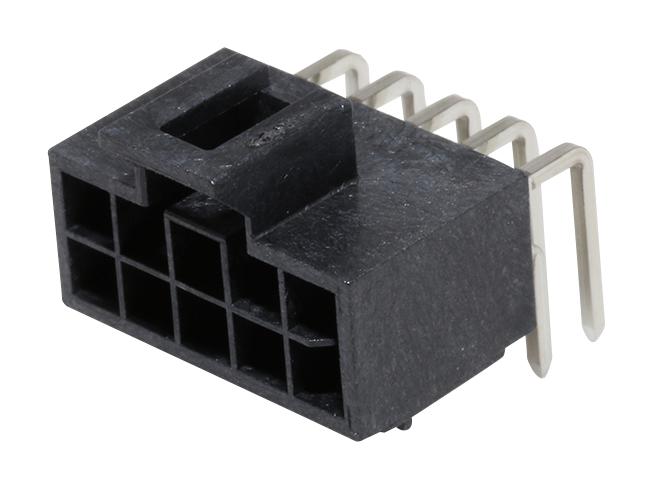

MOLEX 1053141210 Nano-Fit Power Connector
The MOLEX 105314-1210 Nano-Fit Power Connector is a right-angle header ideal for wire-to-board connections in a variety of applications. Its compact Nano-Fit design, combined with a 2.50mm pitch and 10 circuits, makes it suitable for space-constrained environments. The connector features gold-plated mating contacts and tin-plated termination contacts, ensuring reliable electrical performance. It is designed for durability with a 50 mating cycle rating and is Glow-Wire capable, meeting industry standards for safety and performance. This connector is RoHS compliant and offers polarized and keyed features for secure mating.
MOLEX 1053141210 Nano-Fit Power Connector Specifications:
- series: 105314
- description: Nano-Fit Power Connectors
- pitch_mating: 2.50mm
- pitch_termination: 2.50mm
- circuits_loaded: 10
- circuits_maximum: 10
- plating_min_mating: 0.381µm
- plating_min_termination: 1.524µm
- material_metal: Brass
- material_plating_mating: Gold over Nickel
- material_plating_termination: Tin over Nickel
- material_resin: Liquid Crystal Polymer
- operating_temperature_range: -40° to +115°C
- current_max_per_contact: 6.5A
- voltage_max: 300V
- pcb_tail_length: 3.20mm
- pcb_thickness_recommended: 1.60mm, 2.40mm
- number_of_rows: 2
- orientation: Right Angle
- color_resin: Black
- durability_mating_cycles_max: 50
- flammability: 94V-0
- glow_wire_capable: Yes
- keying_to_mating_part: Yes
- lock_to_mating_part: Yes
- polarized_to_mating_part: Yes
- polarized_to_pcb: Yes
- shrouded: Yes
- stackable: No
- surface_mount_compatible: No
- weight: 1.100/g
