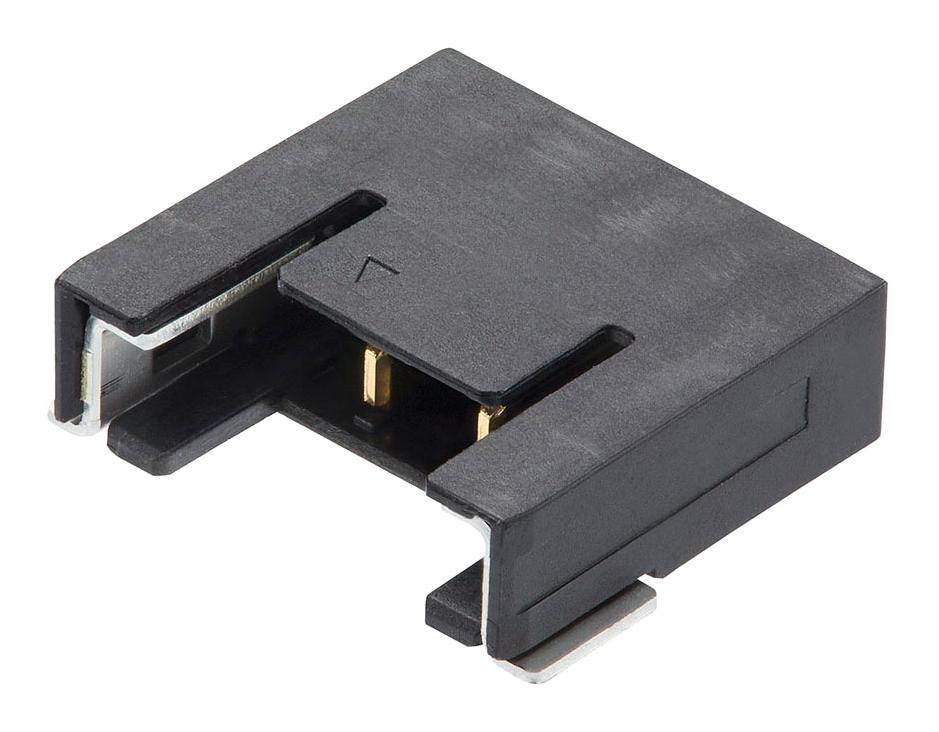

MOLEX 2053380003 Pico-Lock PCB Header
The MOLEX 205338-0003 is a Pico-Lock PCB header offering a compact and reliable connection solution for various electronic applications. Designed with a 2.00mm pitch and a right-angle orientation, this header is suitable for surface mount technology. The positive lock feature ensures a secure and stable connection, while the gold plating on the mating interface provides excellent conductivity and durability. It is commonly used in wire-to-board applications where space is limited and a robust connection is required.
MOLEX 2053380003 Pico-Lock PCB Header Specifications:
- circuits_loaded: 3
- circuits_maximum: 3
- color_resin: Black
- durability_mating_cycles: 30
- glow_wire_capable: No
- guide_to_mating_part: No
- lock_to_mating_part: Yes
- mated_height: 2.60mm
- material_metal: Copper Alloy
- material_plating_mating: Gold (Au)
- material_resin: Polyamide
- net_weight: 240.170/mg
- number_of_rows: 1
- orientation: Right Angle
- packaging_type: Embossed Tape on Reel
- pitch_mating_interface: 2.00mm
- pitch_termination_interface: 2.00mm
- plating_min_mating: 0.100µm
- polarized_to_mating_part: Yes
- shrouded: Fully
- stackable: No
- temperature_range_operating: -40° to +105°C
- termination_interface_style: Surface Mount
- current_maximum_per_contact: 6.5A
- voltage_maximum: 250V AC (RMS)/DC
