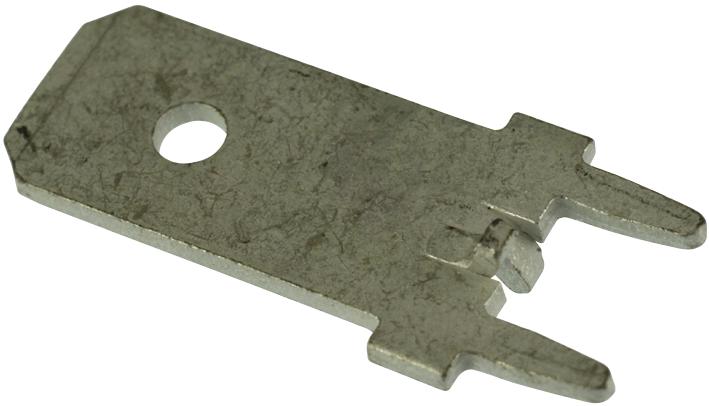

MOLEX 197054003 PCB Quick Disconnect
This PCB tab quick disconnect male connector is designed for wire connections, made of brass with tin plating for durability and corrosion resistance. It features a 6.35 x 0.81 mm metal strip interface, suitable for PCB applications in electronic assemblies. The connector is UL certified, Halogen-Free, and compliant with EU RoHS standards. It is polarized, non-insulated, and supports easy crimping. The product weighs approximately 0.502 grams, supports wire sizes up to 18 AWG, and is ideal for quick, reliable electrical connections in industrial and electronic equipment with a maximum voltage of 800 V.
MOLEX 197054003 PCB Quick Disconnect Specifications:
- Material: Brass with Tin plating
- Dimensions: Tab width 6.35mm, Tab thickness 0.81mm
- Wire Range: Supports up to 18 AWG wire
- Voltage Rating: 800 V maximum
- Weight: approximately 0.502 grams
- Certifications: UL Listed, RoHS Compliant, Halogen-Free, Low-Halogen
- API: PCB component, quick disconnect male type, metal strip
- Orientation: Straight, non-polarized
- Termination Style: Crimp
- Wire Insulation Diameter: N/A
- Net Weight: 0.502g
- Plating: Tin
- Temperature Rating: N/A
- Agency Certification: UL
Buy the Buy Molex PCB Tab Part Number 197054003 Online
Purchase the Molex PCB Quick Disconnect connector online today for your electronic and industrial wiring needs. Made of durable brass with tin plating, this 6.35 x 0.81 mm male connector is UL listed and RoHS compliant, ensuring safety and environmental standards. Supports wire sizes up to 18 AWG with a maximum voltage of 800 V for high-performance applications. Its quick crimping design allows for efficient assembly, making it ideal for reliable electrical connections in various equipment. Order now for fast, secure delivery and seamless integration into your projects.
Get Molex 197054003 today—designed for quick, reliable PCB wire connections with corrosion-resistant tin plating.
Frequently Asked Questions
Where can I buy MOLEX 197054003?
You can click on the BUY or RFQ button to purchase 197054003 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 197054003?
You can download the 197054003 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 197054003?
MOLEX
