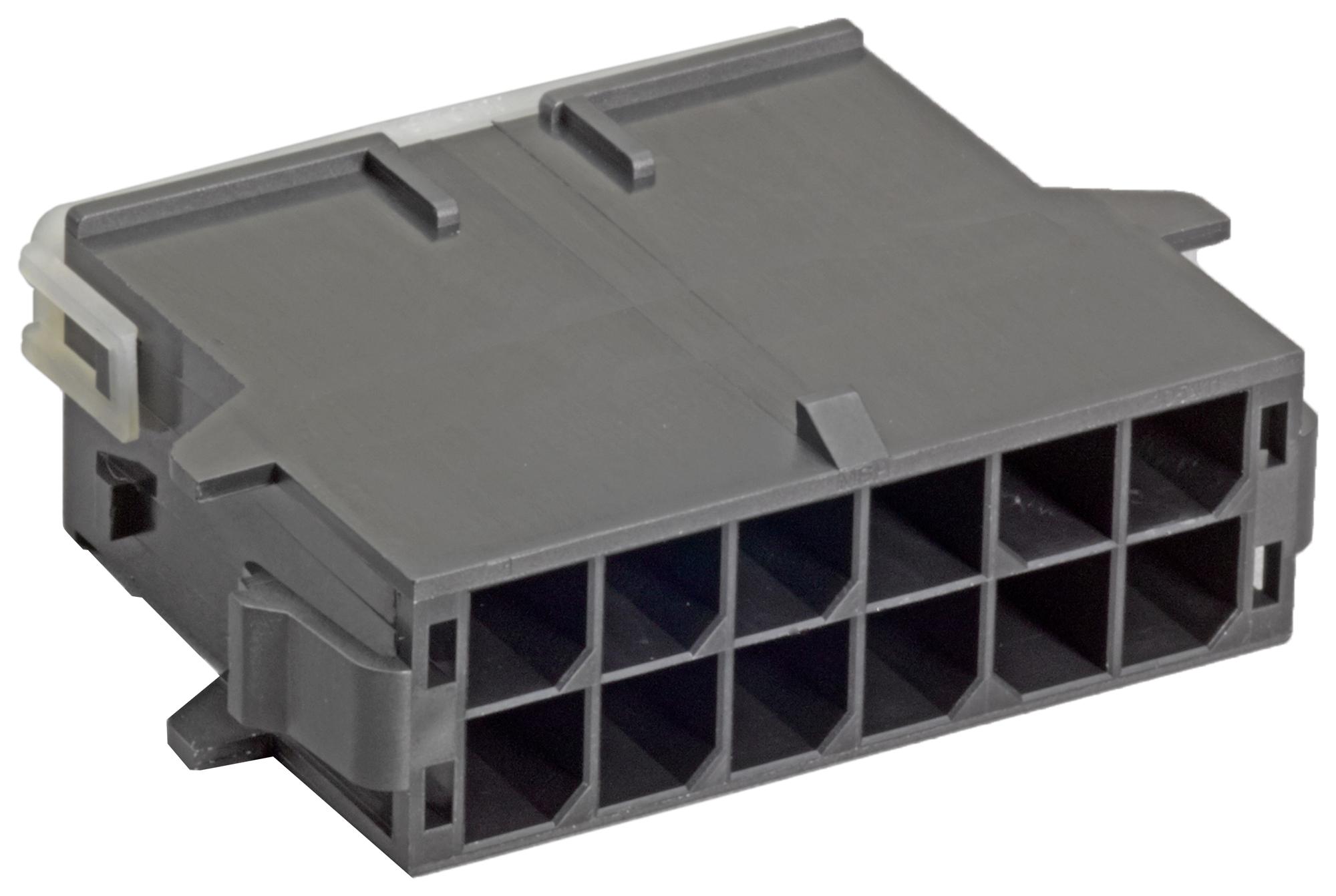

MOLEX 1054110112 Power Connector
Mega-Fit Power Connectors offer a compact, high-current solution with a 5.70mm pitch, supporting 25.0A per circuit. Designed for industrial and consumer applications, these connectors feature fully isolated, tin- or gold-plated contacts, ensuring secure connections and durability. They support hot-plugging at 48V/25A for up to 30 cycles, with polarized, keying, and latch mechanisms for safety and ease of assembly. Compatible with dual-row and single-row systems, they meet RoHS, glow-wire, UL, and CSA standards, providing reliable power distribution in automation, HVAC, and telecommunication equipment.
MOLEX 1054110112 Power Connector Specifications:
- Voltage (max.): 600V
- Current (max.): 25.0A
- Contact Resistance: 6 millichms
- Dielectric Withstanding Voltage: No Breakdown
- Current leakage: <5mA
- Insulation Resistance (min.): 1,000 Megohms
- Contact Insertion Force (max.): 6.8N
- Contact Retention to Housing: 30N
- Insertion Force to PCB (max.): 85N
- Housing Material: UL 94 V-0, Glow Wire compliant
- Contact Material: High-Conductivity Copper
- Plating Options: Gold 0.38 or 0.76 μm, Tin
- Solder Tail Area: Tin
- Underplating: Nickel
- PCB Thickness: 1.60 and 2.40mm (.062 and .093 inches)
- Operating Temperature: -40 to +150°C
- Dimensions: Pitch 5.70mm, compatible with various header and receptacle series
- Standards: RoHS, Glow-wire, UL, CSA
Buy the Molex 1054110112 – Reliable Power Connector for Industrial Applications
Order the Molex Power Connector with 5.70mm pitch today and experience dependable power delivery. Designed for industrial, telecommunication, and consumer equipment, this connector supports 25A per circuit with secure locking, polarization, and compliance with UL, CSA, and RoHS standards. Its robust construction includes tin and gold-plated contacts, ensuring long-lasting performance. Easy to assemble, supports hot-plugging up to 30 cycles at 48V, and meets glow-wire safety standards. Perfect for applications needing reliable high-current power connections with versatile system compatibility.
Get Molex 1054110112 today—built for precision, durability, and safe high-current power distribution in demanding environments.
