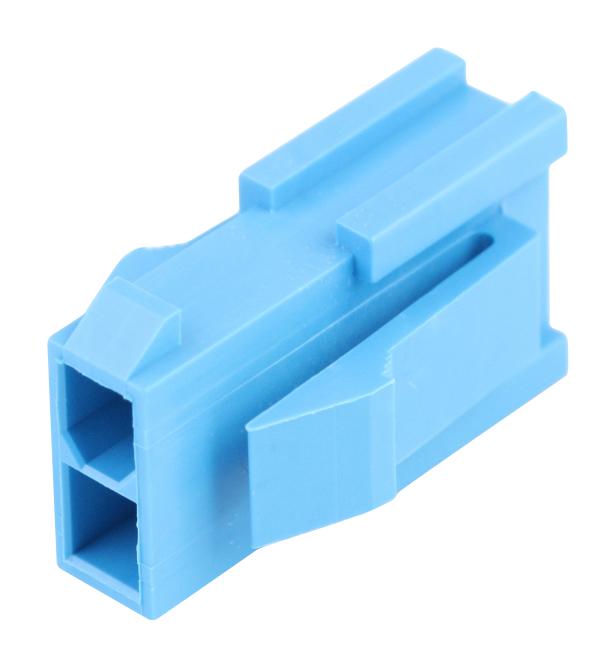

MOLEX 469930240 Mini-Fit Versa Color Plug Housing
The MOLEX 46993-0240 Mini-Fit Versa Color Plug Housing is a robust connector housing designed for a variety of electrical applications, including power distribution, wire-to-board connections, and wire-to-wire harnesses. Constructed from durable Nylon 6/6 material and rated UL 94V-0 for flame retardancy, this housing provides reliable insulation and protection for electrical connections. Its dual-row design accommodates multiple circuits, making it suitable for applications requiring higher current carrying capacity or increased signal density. The housing is also glow-wire capable and features a keyed design for secure mating, enhancing overall system reliability. It is commonly used in automotive, industrial, and consumer electronics applications.
MOLEX 469930240 Mini-Fit Versa Color Plug Housing Specifications:
- product_family: Crimp Housings
- series: 46993
- application: Power, Wire-to-Board, Wire-to-Wire
- circuits_maximum: 2
- color: Blue
- gender: Plug
- glow_wire_capable: Yes
- keying_to_mating_part: None
- lock_to_mating_part: Yes
- material_resin: Nylon 6/6
- net_weight_g: 1.240
- number_of_rows: 2
- packaging_type: Bag
- panel_mount: No
- pitch_mating_interface_mm: 4.20
- pitch_termination_interface_mm: 4.20
- polarized_to_mating_part: Yes
- temperature_range_operating_c: -40° to +105°
- mates_with: Mini-Fit Versa Color Receptacle 46992
- upc: 195842022027
- halogen_free: Yes
- reach_svhc: Not Contained Per - D(2020)4578-DC (25 June 2020)
- elv: Not Relevant
- rohs_phthalates: Not Contained
- china_roh: Green Image
