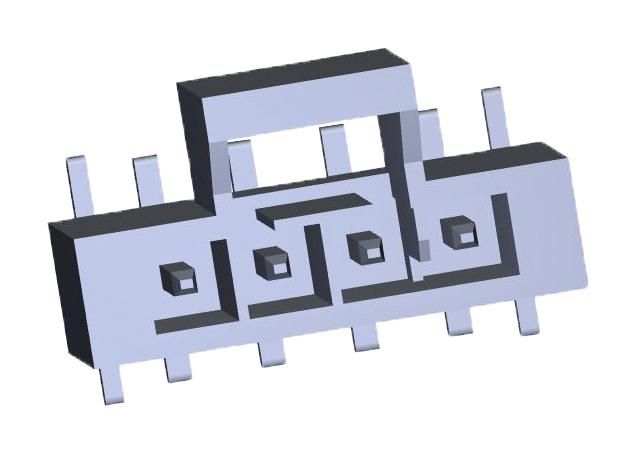

MOLEX 1054311104 Power Connector
The Nano-Fit Power Connectors series offers versatile vertical headers designed for power and wire-to-board applications. This surface-mount, single-row connector features a 2.50mm pitch and 4 circuits, with 0.76μm tin plating for reliable electrical contact. Black, glow-wire capable material ensures safety and durability in various environments. Ideal for compact, high-current applications, these connectors support up to 6.5A current per contact and 250V AC voltage. They are RoHS and ELV compliant, providing a safe, eco-friendly solution for power distribution in electronic assemblies.
MOLEX 1054311104 Power Connector Specifications:
- Pitch: 2.50mm
- Number of Circuits: 4
- Color: Black
- Plating: 0.76μm Tin
- Material - Metal: Brass
- Material - Plating Mating and Termination: Tin
- Material - Resin: Liquid Crystal Polymer
- Durability: Up to 25 mating cycles
- Operating Temperature Range: -40°C to +105°C
- Current - Maximum per Contact: 6.5A
- Voltage - Maximum: 250V AC
- Orientation: Vertical
- Packaged as: Embossed Tape on Reel
- Recommended PCB Thickness: 1.60mm
- Surface Mount Style
- RoHS and ELV Compliant
- Glow-Wire Capable: Yes
Buy the Molex 1054311104 – Reliable Power Connectors for Industrial Applications
Upgrade your power and wire-to-board connections with this high-quality, surface-mount power connector. Featuring a 2.50mm pitch, 4 circuits, and tin plating, it offers excellent electrical performance and durability. Suitable for high-current applications up to 6.5A and 250V AC, the connector is RoHS and ELV compliant, ensuring safety and environmental standards. Its compact design makes it ideal for space-constrained electronic devices, providing secure, reliable connections in industrial, consumer, and automation systems. Purchase online today for fast delivery and trusted quality.
Buy Molex 1054311104 now and experience unmatched reliability and high-current power distribution in electronic assemblies.
Frequently Asked Questions
Where can I buy MOLEX 1054311104?
You can click on the BUY or RFQ button to purchase 1054311104 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1054311104?
You can download the 1054311104 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1054311104?
MOLEX
