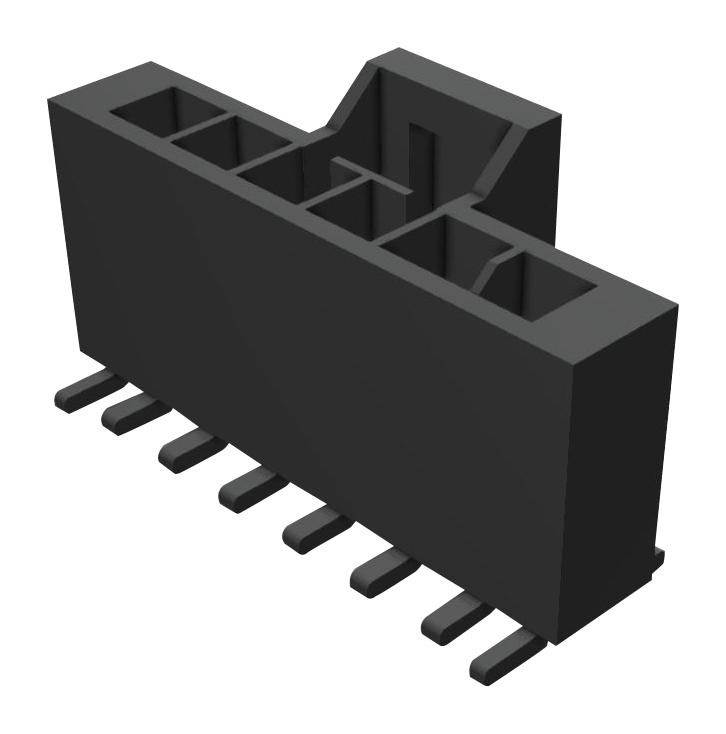

MOLEX 1054311106 Nano-Fit Power Connector
The Nano-Fit Power Connectors are surface mount vertical headers with a 2.50mm pitch, designed for power applications. This single-row, 6-circuit connector features 0.76um tin plating for enhanced durability and corrosion resistance. It is glow-wire capable, suitable for low-voltage, high-current circuits, and meets RoHS compliance. The connector is made of high-quality brass with tin plating on the mating contacts and termination points. It supports up to 6.5A current at 250V AC, with a rugged design for 6 mating cycles, perfect for compact power supply and distribution applications.
MOLEX 1054311106 Nano-Fit Power Connector Specifications:
- Pitch - Mating Interface: 2.50mm
- Number of Circuits: 6
- Color - Resin: Black
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Plating min - Mating: 0.762um
- Plating min - Termination: 0.762um
- Durability (mating cycles max): 6
- Temperature Range - Operating: -40°C to +105°C
- Current - Maximum per Contact: 6.5A
- Voltage - Maximum: 250V AC (RMS)
- Physical: Surface Mount, vertical orientation
- Net Weight: 1.040g
- Packaging Type: Embossed Tape on Reel
- Glow-Wire Capable: Yes
- RoHS Compliant: Yes
- Halogen-Free: Yes
Buy the Molex Series Nano-Fit Power Connectors: 1054311106
Order the Molex Nano-Fit Power Connector with 6 circuits and 2.50mm pitch today. Designed for power distribution with a robust design, tin plating, and glow-wire capability. Supports up to 6.5A and 250V AC, making it ideal for compact, reliable power connections in various electronic devices. Easy to surface mount on PCBs, this connector ensures secure electrical contact and durability for demanding applications. Purchase online today for fast shipping and quality assurance, ensuring your project's success with Molex's trusted connector solutions.
Get Molex Nano-Fit Power Connectors 1054311106 today—built for high-current power applications and lasting reliability.
