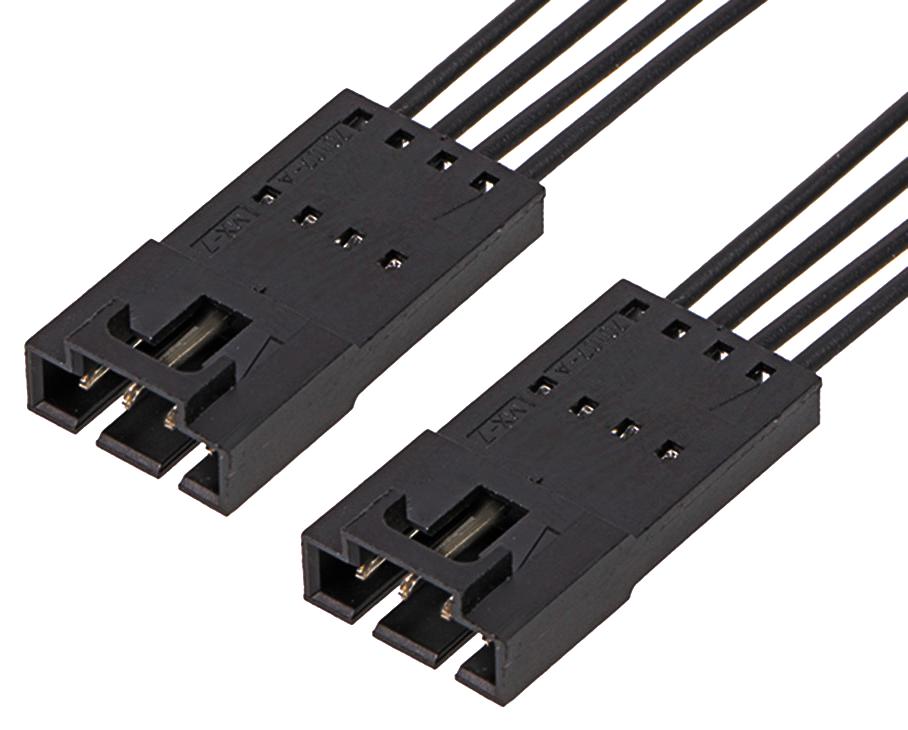

MOLEX 2162721040 Stackable Cable Assembly
These off-the-shelf stackable linear positive-lock discrete cable assemblies are versatile, supporting prototyping and mass production. Designed for reliability, they feature two contact points, a lock to prevent disengagement, and compatibility with various termination styles like crimp, FFC, and IDT. Rated up to 600V AC/DC and 3A, they operate in temperatures from -40°C to +105°C, ensuring long-term electrical performance. Made with durable polyester alloy housings and tin-plated phosphor bronze contacts, these assemblies are compliant with UL and CSA standards, ideal for high-vibration environments and secure PCB mounting.
MOLEX 2162721040 Stackable Cable Assembly Specifications:
- Cable Length: 50.00mm
- Number of Circuits: 4
- Color: Black
- Gender: Male-Male
- Termination Style: Crimp, Compression
- Wire Insulation Diameter: 1.63mm max.
- Wire Size: 22 AWG
- Material - Metal: Phosphor Bronze
- Material - Plating Mating & Termination: Tin
- Material - Resin: Polyester Alloy
- Voltage Rating: 600 V AC/DC
- Current - Maximum per Contact: 3.0A
- Operating Temperature Range: -40°C to +105°C
- Number of Mating Cycles: Up to 25
- Housing Types: Stackable, Vertical, Right-angle, Low-profile
- Locking Mechanism: Positive Lock with Position Assurance
- RoHS and UL Compliant
Buy the Molex Series 216272 Cable: 2162721040
Purchase the Molex 2162721040 stackable cable assembly online today to ensure high quality, durability, and versatile termination for your electronic projects. This reliable assembly supports multiple applications, including prototyping and mass production, with a rated voltage of 600V and current capacity of 3A. Made with durable materials such as tin-plated phosphor bronze and polyester alloy housing, it provides long-term electrical stability. With UL and CSA certifications, this assembly guarantees safe, efficient, and secure connections for high-reliability demanding environments, perfect for engineers and technicians seeking quality and performance.
Buy Molex 2162721040 now and experience unmatched reliability and performance in high-vibration environments with secure PCB mounting and versatile termination options.
Frequently Asked Questions
Where can I buy MOLEX 2162721040?
You can click on the BUY or RFQ button to purchase 2162721040 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2162721040?
You can download the 2162721040 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2162721040?
MOLEX
