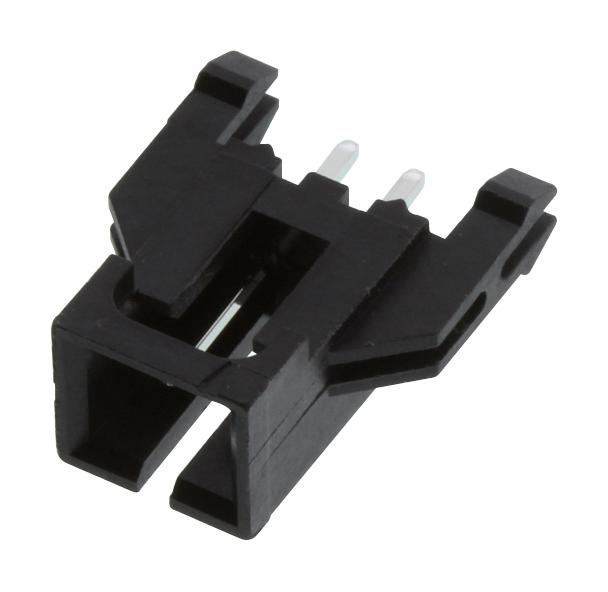

MOLEX 705410001 SL Header, Single Row, Vertical
The MOLEX 70541-0001 is a robust and reliable SL Modular connector, specifically engineered for wire-to-board connectivity. With a 2.54mm pitch and a vertical orientation, it provides a compact and efficient solution for connecting PCBs. The tin plating ensures excellent solderability and corrosion resistance, while the shrouded design protects against environmental factors. This connector is commonly used in industrial automation, consumer electronics, and automotive applications where secure and dependable connections are essential. Its vertical design minimizes space requirements, making it suitable for densely populated circuit boards.
MOLEX 705410001 SL Header, Single Row, Vertical Specifications:
- Circuits (Loaded): 2
- Circuits (maximum): 2
- Color - Resin: Black
- Durability (mating cycles max): 25
- Flammability: 94V-0
- Guide to Mating Part: None
- Lock to Mating Part: Yes
- Material - Metal: Brass, Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Net Weight: 0.601/g
- Number of Rows: 1
- Orientation: Vertical
- PC Tail Length: 3.30mm
- PCB Locator: Yes
- PCB Retention: Yes
- PCB Thickness - Recommended: 1.60mm
- Packaging Type: Tube
- Pitch - Mating Interface: 2.54mm
- Plating min - Mating: 3.810µm
- Plating min - Termination: 3.810µm
- Polarized to Mating Part: Yes
- Shrouded: Fully
- Stackable: No
- Surface Mount Compatible (SMC): Yes
- Temperature Range - Operating: -40° to +105°C
- Termination Interface: Style: Through Hole
- Current - Maximum per Contact: 3.0A
- Voltage - Maximum: 250V
- Duration at Max. Process Temperature (seconds): 003
- Lead-freeProcess Capability: WAVE
- Max. Cycles at Max. Process Temperature: 001
- Process Temperature max. C: 245
