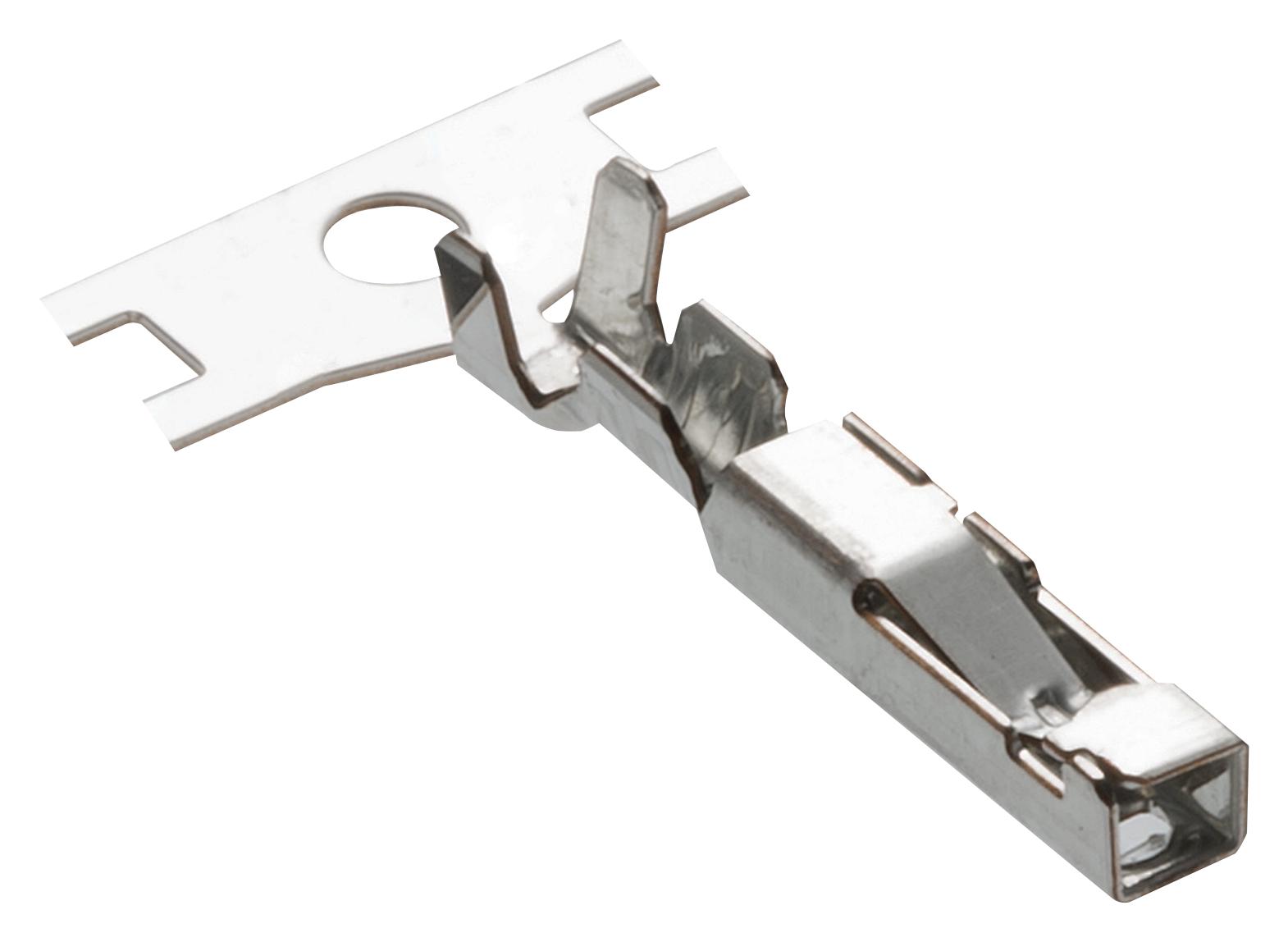

MOLEX 503978001 Crimp Terminal Female
The CP-3.3 Wire-to-Board Crimp Terminal is a female connector compatible with 22-24 AWG wire sizes, made from phosphor bronze with tin plating for reliable electrical connections. It is designed for crimp or compression termination, supporting maximum current of 8.5A and voltage of 500V AC/DC. This reel-packaged terminal is suitable for power and wire-to-board applications, ensuring durable and secure connections. The product complies with RoHS standards and is ideal for electronics requiring compact, efficient crimping solutions.
MOLEX 503978001 Crimp Terminal Female Specifications:
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Wire Size AWG: 22, 24
- Wire Insulation Diameter: 1.30-1.80mm
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 500V AC/DC
- Packaging Type: Reel
- Termination Interface: Crimp or Compression
- Net Weight: 103.000/mg
- Application: Power, Wire-to-Board
- Product Family: Series 50397
- Part Number: 0503978001
- Product Name: Crimp Terminal Female
- RoHS: Compliant
- Status: Active
Buy the Buy Moax 50397 Wire-to-Board Crimp Terminal Female 0503978001 Online
Purchase the Molex 50397 wire-to-board crimp terminal online for reliable power connections and secure crimping. Designed for 22-24 AWG wires, it features a tin-plated phosphor bronze construction for excellent electrical conductivity and corrosion resistance. Suitable for crimp or compression terminations, supporting up to 8.5A and 500V. Sold in reel packaging for ease of use, ensuring consistent, durable connections. Perfect for electronics assembly, automation, and power supply units, this terminal meets RoHS standards for environmentally friendly applications.
Get Molex 50397 today—built for precision and long-lasting durability, ideal for power and wire-to-board electrical connections.
Frequently Asked Questions
Where can I buy MOLEX 503978001?
You can click on the BUY or RFQ button to purchase 503978001 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 503978001?
You can download the 503978001 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 503978001?
MOLEX
