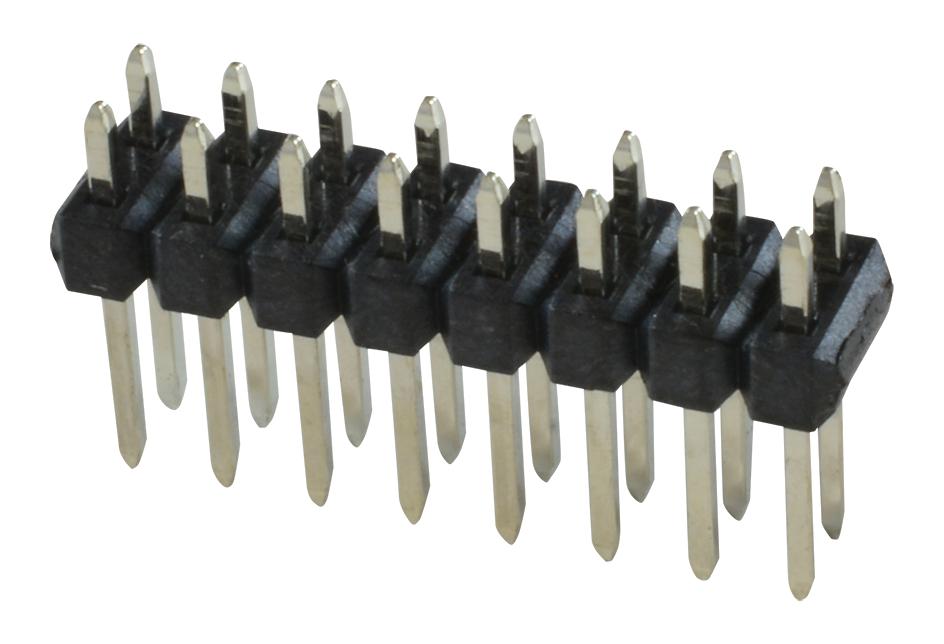

MOLEX 10897801 C-Grid Connector
The 2.54mm Pitch C-Grid Breakaway Header is a versatile, high-temperature connector featuring dual rows and a 2.72mm PC tail length. Made from high-temperature thermoplastic with a copper alloy contact and tin plating, it supports up to 3A current and 250V voltage ratings. Suitable for board-to-board and wire-to-board connections, it offers reliable mating with a durable design rated for multiple mating cycles. Compliant with RoHS, UL, and CSA standards, this connector is ideal for industrial and electronic applications requiring robust and high-temperature performance.
MOLEX 10897801 C-Grid Connector Specifications:
- Pitch: 2.54mm
- Circuits (Loaded): 80
- Color - Resin: Not specified
- Durability (mating cycles max): Not specified
- Material - Metal: Copper Alloy
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- PC Tail Length: 2.72mm
- Operating Temperature Range: -40°C to +105°C
- Current - Maximum per Contact: 3A
- Voltage - Maximum: 250V
- Through Hole Mounting Style: Yes
- Number of Rows: 2
- Orientation: Vertical
- Packaging Type: Bag
- Flammability: Not specified
- RoHS, UL, CSA Certification: Yes
- Process Temperature Max: Not specified
- Density: Not specified
- Guide to Mating Part: None
- Lock to Mating Part: None
Buy the Molex 10897801 – Reliable High-Temperature C-Grid Header for Industrial Applications
Purchase the Molex C-Grid Connector online today and benefit from its high-temperature tolerance, durable tin plating, and robust design. Ideal for board-to-board and wire-to-board applications, this connector ensures secure and reliable connections in demanding environments. With a 2.54mm pitch and dual row configuration, it supports up to 3A current and 250V voltage ratings. Easy to install and compliant with RoHS, UL, and CSA standards, this connector is a perfect choice for engineers and technicians seeking dependable, high-performance industrial connectors.
Buy Molex 10897801 now and experience unmatched reliability and performance for industrial and electronic connections.
Frequently Asked Questions
Where can I buy MOLEX 10897801?
You can click on the BUY or RFQ button to purchase 10897801 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 10897801?
You can download the 10897801 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 10897801?
MOLEX
