MOLEX 1200661035 Industrial M12 Cordset

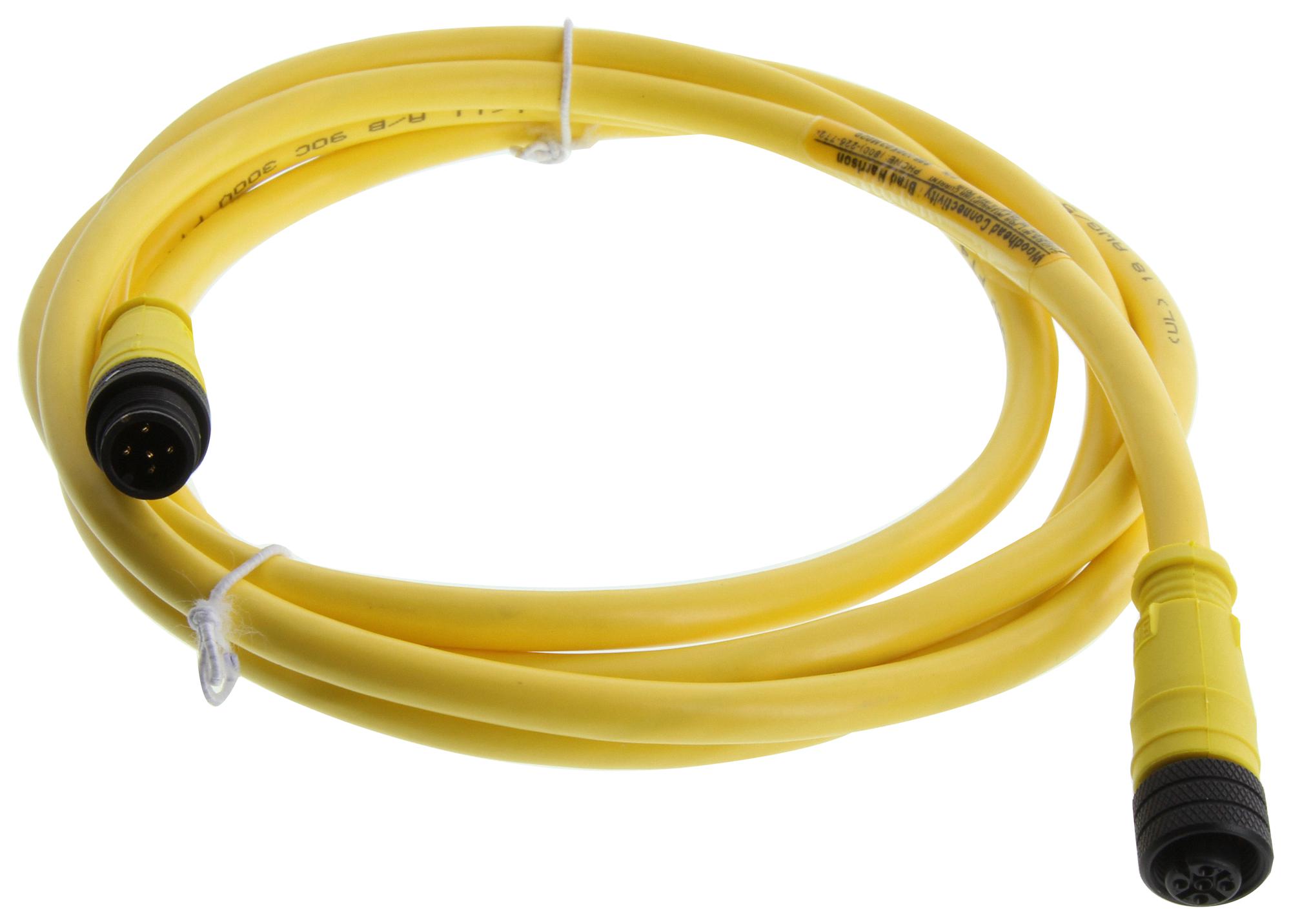

The Micro-Change M12 Double-Ended Cordset features 5 poles with female and male straight connectors, 18 AWG TPE cable, and a length of 2.0 meters. It is designed for industrial automation and robotics, offering IP67 protection, nickel-plated brass contacts, and a threaded coupling style for secure connection. Certified by CSA and UL, this durable cordset operates within a temperature range of -20°C to +105°C. Ideal for reliable data transmission and power connections in harsh environments, it combines robust construction with flexibility for diverse industrial applications.
MOLEX 1200661035 Industrial M12 Cordset Specifications:
- Product Family: Micro-Change (M12)
- Connector End A: Female, Straight
- Connector End B: Male, Straight
- Poles: 5
- Cable Diameter: 6.86mm (.270")
- Cable Length: 2.0 meters (6.56')
- Cable Jacket Material: TPE
- Material - Connector Body: Nickel-plated Brass
- Material - Coupling Nut: Nickel-plated Brass
- Material - O-Ring: Fluoro-elastomer
- IP Rating: IP67
- Temperature Range: -20°C to +105°C
- Wire Size AWG: 18
- Current - Maximum per Contact: 4.0A
- Voltage - Maximum: 250V AC/DC
- Certifications: CSA, UL
- Operating Environment: Industrial, Harsh environments
- Gender: Female to Male
- Coupling Style: Threaded
Buy the Molex Series Micro-Change M12 Cordset: 1200661035
Enhance your automation system with the durable Molex Micro-Change M12 Double-Ended Cordset. Featuring five poles with IP67 protection, nickel-plated brass contacts, and a flexible 2-meter TPE cable, it ensures reliable power and data transmission in demanding environments. Its threaded coupling guarantees secure connections, suitable for robotics, machinery, and automation equipment. Certified by CSA and UL, this cordset operates from -20°C to +105°C, delivering professional-grade quality for industrial applications. Purchase online now for fast, dependable connectivity.
Buy Molex 1200661035 now and experience unmatched reliability and performance in industrial automation with IP67 sealing and robust construction.
