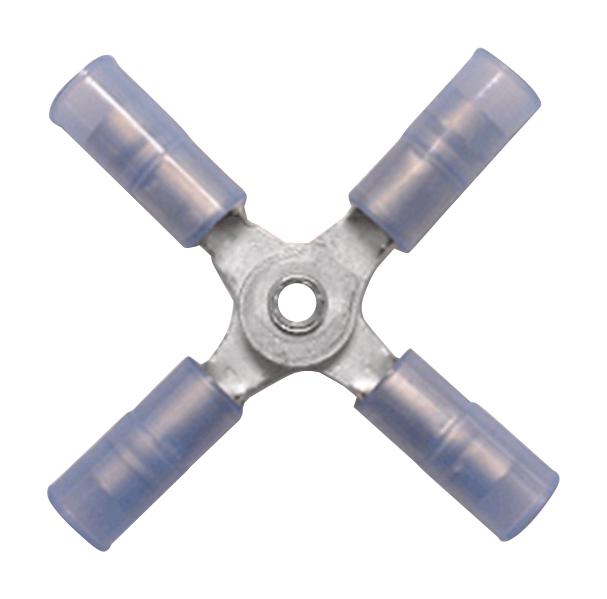

MOLEX 192040017 Avikrimp 4 Way Splice
The MOLEX 19204-0017 Avikrimp 4-way splice is a robust solution for connecting multiple wires in automotive, industrial, and consumer electronics applications. Designed for 14-16 AWG wire, this splice offers a secure and reliable connection, minimizing the risk of signal loss or power interruption. The Avikrimp design ensures a consistent and high-quality crimp, contributing to the overall durability and performance of the electrical assembly. Its compact barrel type closed design and nylon insulation provide excellent protection against environmental factors, making it suitable for demanding environments.
MOLEX 192040017 Avikrimp 4 Way Splice Specifications:
- Series: 19204
- EU ELV: Not Relevant
- Crimp Quality Equipment: Yes
- Mil-Spec: N/A
- EU RoHS: Compliant
- China RoHS: Not Contained Per - ED/30/2017 (7 July 2017)
- Barrel Type: Closed
- Color - Resin: Natural
- Insulation: Nylon (PA)
- Material - Metal: Copper
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Net Weight: 5.372/g
- Packaging Type: Bag
- Plating min - Mating: 2.540µm
- Plating min - Termination: 2.540µm
- Temperature Range - Operating: -55° to +105°C
- Wire Insulation Diameter: 4.32mm max.
- Wire Size AWG: 14, 16
- Wire Size mm²: 1.30-2.00
- Voltage - Maximum: 600V
- Engineering Number: B-5XC
- Product # Reference - Drawing Numbers: SD-19204-002
- Halogen-Free: Yes
- Low-Halogen: Yes
- RoHS Phthalates: Not Contained
