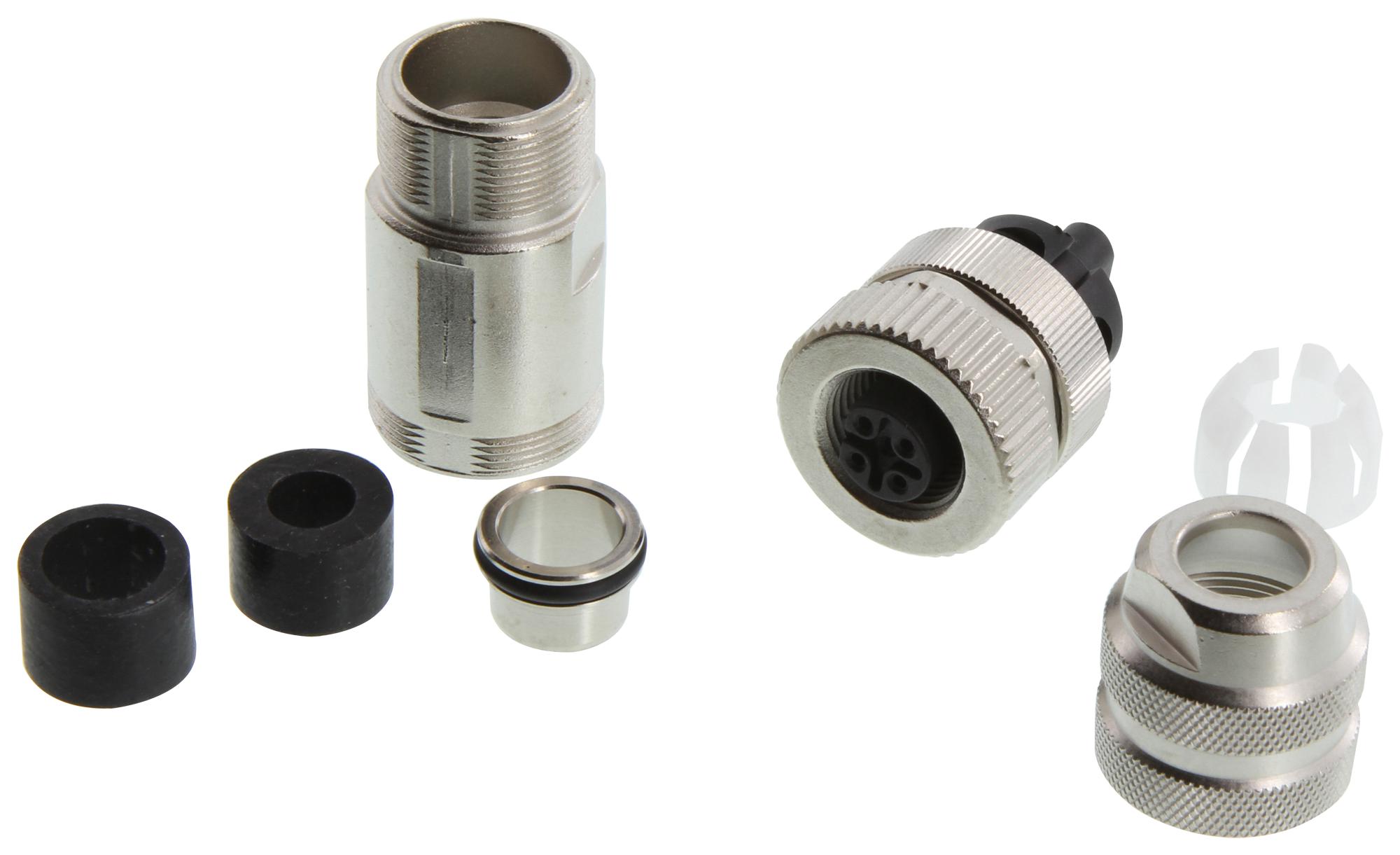

MOLEX 1201000001 Micro-Change M12 Connector
The MOLEX 1201000001 Micro-Change (M12) Field Attachable Connector is a robust solution for PROFIBUS applications requiring shielded connections. This connector offers a straight female gender and is designed for field attachment, simplifying installation and maintenance. Constructed with a nickel-plated brass coupling nut and silver-plated mating contacts, it ensures reliable performance in industrial environments. It is RoHS compliant and features an IP67 rating for environmental protection.
MOLEX 1201000001 Micro-Change M12 Connector Specifications:
- Product Family: Field Attachable / Accessories
- Series: 120100
- IP Rating: IP67
- Material - Contact: Brass
- Overview: PROFIBUS Solutions
- Type: Field Attachable Connector
- Coupling Type: Internal Thread
- Diagnostics / LEDs: No
- Gender: Female
- Material - Connector Body: N/A
- Material - Plating Mating: Silver
- Orientation: Straight
- Poles: 5
- Temperature Range - Operating: -25°C to +90°C
- Wire Size AWG: 22
- Current - Maximum per Contact: 4.0A
- Voltage - Maximum: 250V
- Engineering Number: BA5S00-32
- Sales Drawing: 1201000001-000
- Cable Diameter: N/A
- Keyway: Reverse
- Material - Coupling Nut: Nickel-plated Brass
- Diagnostics Port: No
