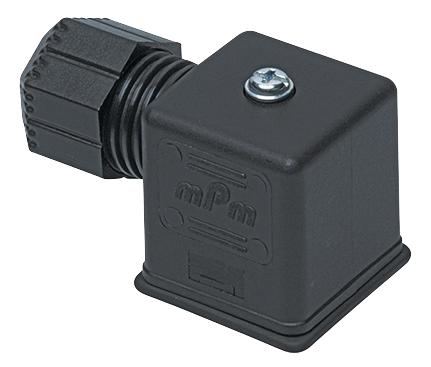

MOLEX 1210230341 DIN Valve Connector
The Molex mPm DIN Valve Connector is a robust, IP65-rated field-attachable connector designed for industrial valve applications. It features a compact form factor with 3 poles plus a ground, a 18mm form factor, and internal PG@Q threads. Made from durable polyamide, it is rated for -40°C to +90°C operation, with a maximum current of 16A and voltage of 250V AC/300V DC. Equipped with a profiled NBR gasket, it ensures environmental sealing, making it ideal for reliable electrical connections in demanding environments.
MOLEX 1210230341 DIN Valve Connector Specifications:
- Form: A-18mm
- IP Rating: IP65
- Material - Contact: Brass
- Material - Connector Body: Polyamide
- Material - Coupling Nut: N/A
- Material - Plating Mating: Silver
- Cable Diameter: 6.00-8.00mm
- Coupling Type: Internal Thread PG@Q
- Gender: N/A (Connectors are mounted)
- Net Weight: 24.914 grams
- Orientation: 90° Angle
- Pitch - Mating Interface: 18.00mm
- Poles: 3
- Temperature Range - Operating: -40°C to +90°C
- Wire Size AWG: N/A
- Current - Maximum per Contact: 16.0A
- Voltage - Maximum: 250V AC / 300V DC
Buy the Molex Series mPm DIN Valve: 1210230341
Purchase the Molex DIN Valve Connector online today for dependable industrial applications. Designed for durability and environmental sealing, it features 3 poles plus ground, an IP65 rating, and operates within -40°C to +90°C. Its compact form fits various valve systems, providing secure electrical connections with a maximum current of 16A and voltage of 250V AC/300V DC. Ideal for demanding environments requiring reliable performance, this connector ensures safety and long-lasting durability for industrial automation and control systems.
Get Molex 1210230341 today—built for robust and reliable industrial valve connections.
