MOLEX 2162731021 Discrete Wire Assembly
This versatile off-the-shelf stackable linear positive lock cable assembly is ideal for prototyping and production across various industries. Designed with a durable polyester alloy housing and tin-plated phosphor bronze contacts, it supports secure wire-to-wire and wire-to-board connections with a connector position assurance lock. Suitable for applications in consumer electronics, industrial, automotive, and medical sectors, it handles up to 600V AC/DC and 3A current, with an operating temperature range from -40°C to +105°C. Rated for up to 25 mating cycles, ensuring long-term reliability and safety.
MOLEX 2162731021 Discrete Wire Assembly Specifications:
- Connector Type: SL Male-to-Pigtail
- Cable Length: 100.00mm
- Circuits: 2
- Color - Resin: Black
- Gender: Male-Pigtail
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester Alloy
- Net Weight: 1.705 grams
- Number of Rows: 1
- Packaging Type: Bag
- Pitch - Mating Interface: 2.54mm
- Termination Interface Style: Crimp or Compression
- Wire Insulation Diameter: 1.63mm max.
- Wire Size AWG: 22
- Wire/Cable Type: Discrete Wire Assembly
- Current - Maximum per Contact: 3.0A
- Voltage - Maximum: 600V AC/DC
- Operating Temperature Range: -40°C to +105°C
- Rated Mating Cycles: 25
- Certifications: UL Listed, CSA Certified

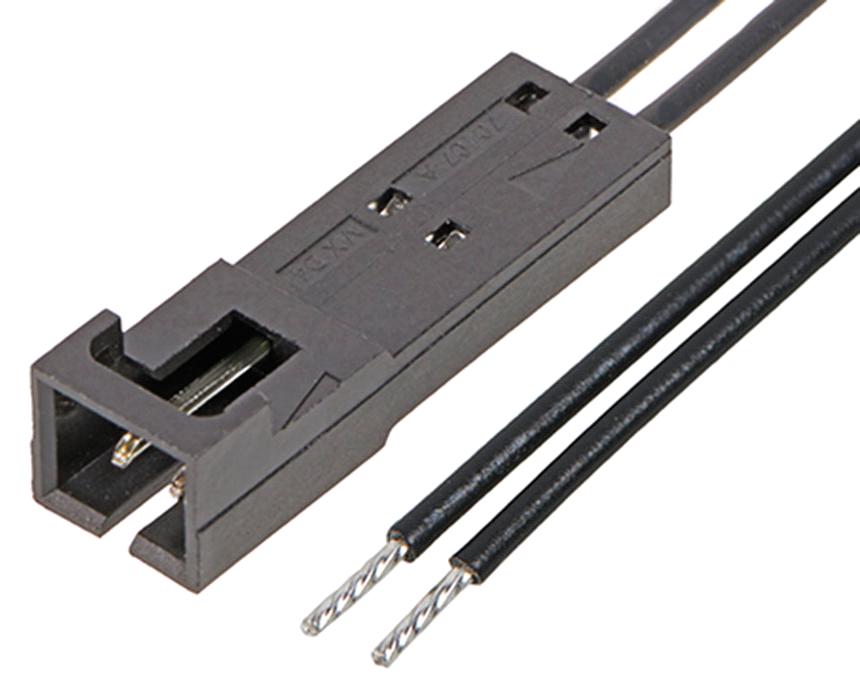

Buy the Buy Molex Off-the-Shelf Cable Assembly Part Number 2162731021 Online
Purchase the Molex discrete wire assembly part number 2162731021 online today and ensure seamless connectivity for your electronic applications. This high-quality cable assembly offers a positive lock, two circuits, and a robust polyester alloy housing, making it suitable for prototyping, industrial, automotive, and medical uses. Its tin-plated phosphor bronze contacts provide excellent electrical performance, supporting up to 600V and 3A. With up to 25 mating cycles and compliance with UL and CSA standards, this assembly guarantees long-term safety and reliability in various demanding environments.
Buy Molex 2162731021 now and experience unmatched reliability and high vibration resistance for your industrial, medical, or automotive projects.
Frequently Asked Questions
Where can I buy MOLEX 2162731021?
You can click on the BUY or RFQ button to purchase 2162731021 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2162731021?
You can download the 2162731021 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2162731021?
MOLEX
