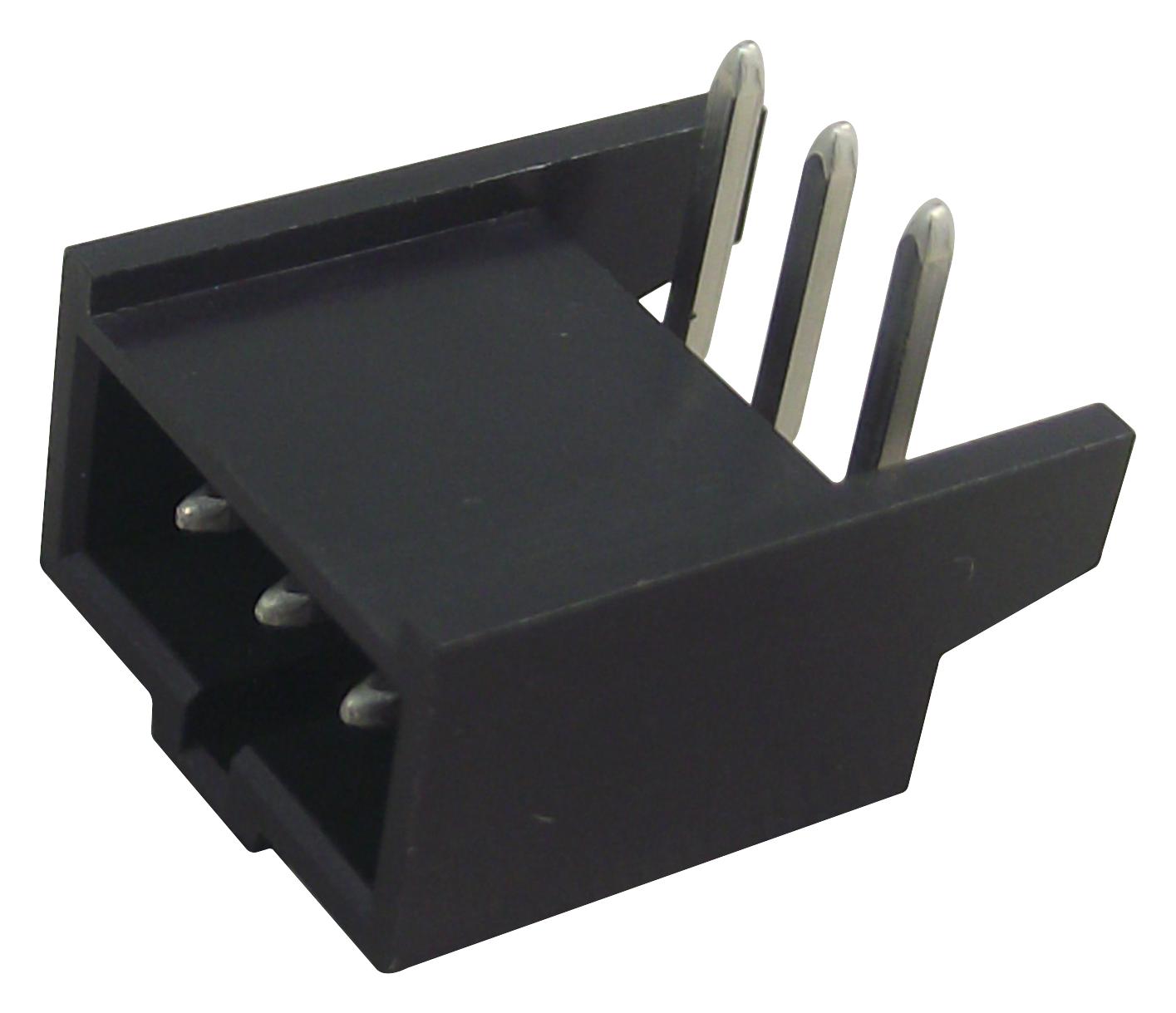

MOLEX 901362203 PCB Header
The C-Grid Ill Header is a high-quality, right-angle shrouded PCB connector with three circuits, designed for signal and wire-to-board applications. Made with durable brass material, it features gold plating for enhanced conductivity, tin-plated terminations, and a polyester resin housing rated for -55°C to +125°C. The connector supports a 2.54mm pitch, fits 1.60mm thick PCBs, and complies with RoHS standards. It is suitable for various electronic assemblies requiring reliable, stackable connections with a maximum current of 3.0A per contact and voltage of 350V AC/DC.
MOLEX 901362203 PCB Header Specifications:
- Circuits: 3 (maximum 3)
- Color: Black
- Flammability: 94V-0
- Material - Metal: Brass
- Material - Plating - Mating: Gold
- Material - Plating - Termination: Tin
- Material - Resin: Polyester
- Orientation: Right Angle
- Pitch: 2.54mm
- PCB Thickness - Recommended: 1.60mm
- Contact Current: 3.0A per contact
- Voltage - Maximum: 350V AC/DC
- Temperature Range: -55°C to +125°C
- Termination Interface: Through Hole
- Package Type: Tray
- Physical Dimensions: Tail Length 2.90mm, Net Weight 0.686g
- RoHS Compliant: Yes, China RoHS, ELV not relevant
- Certifications: CSA LR19980, UL E29179
Buy the Molex Series 90136 C-Grid Ill: 3 Circuit PCB Header
Purchase the Molex 901362203 C-Grid Ill PCB header online today. This high-quality, three-circuit right-angle connector features durable brass construction, gold plating for superior conductivity, and a 2.54mm pitch suitable for a variety of electronic assemblies. Rated for -55°C to +125°C, it supports 3.0A per contact and 350V AC/DC voltage. Fully RoHS compliant, it offers reliable, stackable connections ideal for signal wiring, wire-to-board, and electronic component assembly needs. Available now for quick delivery.
Buy Molex 901362203 now and experience unmatched reliability and performance in signal and wire-to-board interconnect applications.
