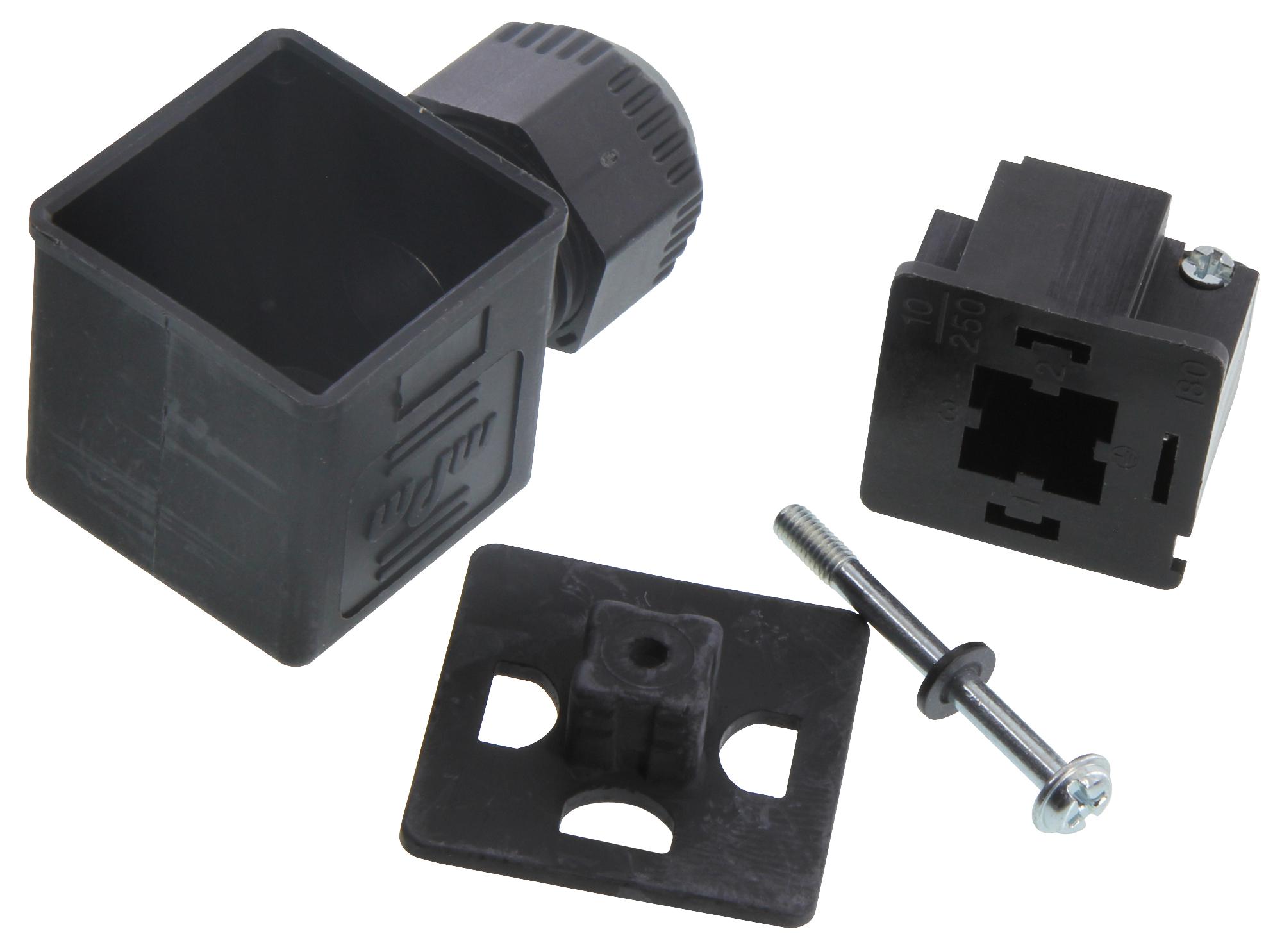

MOLEX 1212010001 DIN Valve Connector
The mPm® DIN Valve Connector is a robust, IP67-rated, 2-pole connector designed for industrial applications. Made from durable polypropylene with brass contacts and silver plating, it ensures reliable electrical connections in harsh environments. Featuring an external thread coupling type and a 90° angle orientation, it supports a maximum operating temperature of -25°C to +75°C, with a maximum current of 16A and voltage of 250V. Its screw-type connection provides secure attachment, making it ideal for field attachable applications requiring rugged performance and environmental resistance.
MOLEX 1212010001 DIN Valve Connector Specifications:
- Series: 121201
- Product Family: Field Attachable / Accessories
- IP Rating: IP67
- Material - Connector Body: Polypropylene
- Material - Contact: Brass
- Material - Plating: Silver on contacts
- Coupling Type: External Thread
- Orientation: 90° Angle
- Poles: 2
- Temperature Range: -25°C to +75°C
- Maximum Current per Contact: 16A
- Maximum Voltage: 250V AC/DC
Buy the Molex Series 121201 mPm® DIN Valve Connector: 1212010001
Purchase the Molex DIN Valve Connector today for reliable field connections in demanding industrial applications. Designed with IP67 waterproof rating, durable polypropylene body, brass contacts, and silver plating, it ensures long-lasting performance. This 2-pole connector with a screw coupling type is suitable for environments exposed to dust, moisture, and temperature variations, supporting up to 16A current and 250V voltage. Easy to install and securely attach, it offers a versatile solution for robust automation and fluid control systems.
Get Molex 1212010001 today—built for rugged industrial environments with IP67 waterproof protection and reliable screw coupling.
Frequently Asked Questions
Where can I buy MOLEX 1212010001?
You can click on the BUY or RFQ button to purchase 1212010001 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1212010001?
You can download the 1212010001 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1212010001?
MOLEX
