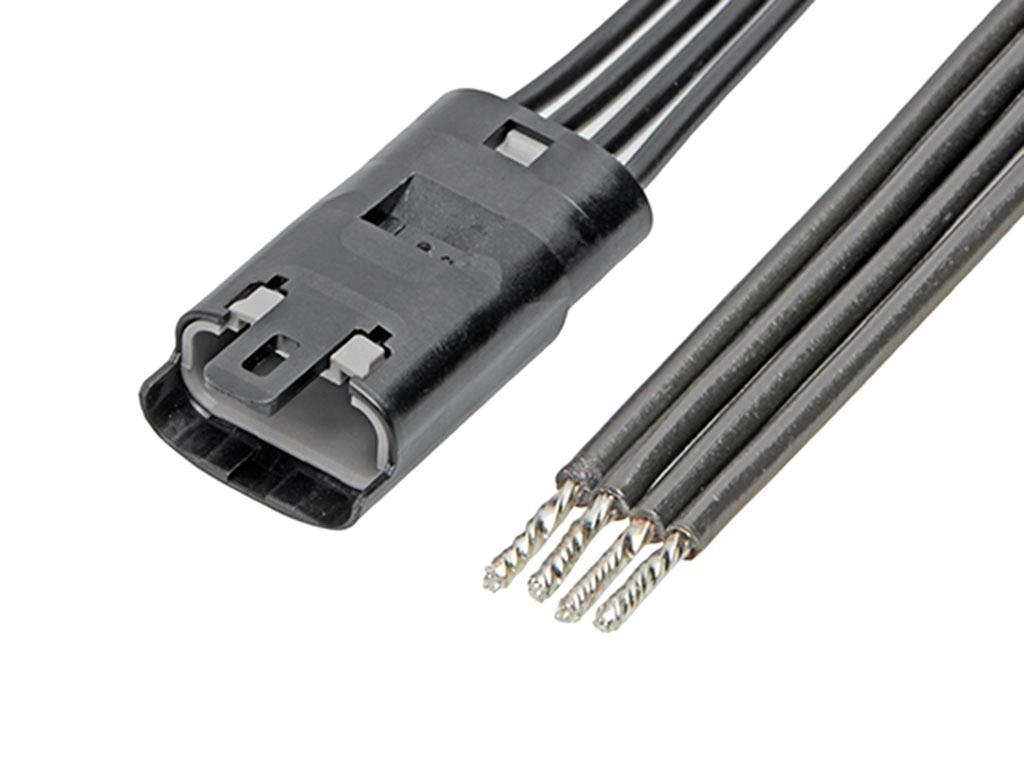

MOLEX 2153131042 Waterproof Connector
The Mizu-P25 miniature waterproof connector cable assemblies are designed with a 2.50mm pitch, suitable for industrial automation, automotive, and consumer electronics. They feature a male-to-pigtail configuration, IP67 rated sealing for dust and water resistance, and a 300mm cable length. Constructed with polyester housings and tin-plated phosphor bronze contacts, these assemblies support up to 4A current and 60V maximum voltage. They are robust, secure, and ideal for high vibration environments, providing reliable performance in demanding applications with a positive lock and integral seal stopper.
MOLEX 2153131042 Waterproof Connector Specifications:
- Pitch: 2.50mm
- Number of Circuits: 4
- Cable Length: 300.00mm
- Housing Material: Polyester
- Contact Material: Phosphor Bronze
- Contact Plating: Tin
- Current Rating: 4A
- Voltage Rating: 60V
- Sealing: IP67 rated waterproof
- Termination Style: Crimp or Compression
- Wire Insulation Diameter: 1.40-1.90mm
- Wire Size: 20, 22 AWG
- Color - Resin: Black
- Gender: Male-Pigtail
- Locking Feature: Positive lock for secure mating
- Application: Automotive, consumer electronics, industrial automation
Buy the Buy Molex Waterproof Connector Part Number 2153131042 Online
Purchase the Molex waterproof connector assembly today to experience superior protection against dust and water ingress. With a 2.50mm pitch, 4 circuits, and a 300mm cable length, it is perfect for automotive, industrial automation, and consumer electronics applications. The IP67 rated design guarantees durability in harsh environments, featuring a male-to-pigtail configuration with secure locking and proven sealing performance. Made of polyester with tin-plated phosphor bronze contacts, this connector supports up to 4A current at 60V, ensuring dependable, long-lasting connectivity for your critical systems.
Buy Molex 2153131042 waterproof connector now and ensure reliable, dustproof, water-resistant connections for your industrial and automotive needs.
Frequently Asked Questions
Where can I buy MOLEX 2153131042?
You can click on the BUY or RFQ button to purchase 2153131042 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153131042?
You can download the 2153131042 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153131042?
MOLEX
