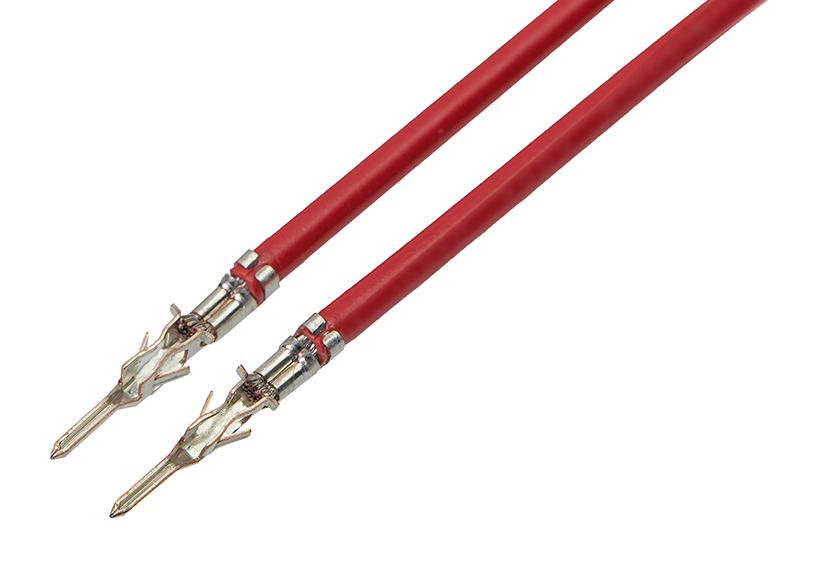

MOLEX 2147622225 Micro-Fit 3.0 Male-to-Male
The MOLEX 214762-2225 is a pre-crimped lead cable assembly designed for power and wire-to-wire applications. It utilizes Micro-Fit 3.0 male connectors on both ends, providing a secure and reliable connection. The gold plating on the mating contacts and tin plating on the termination contacts ensure excellent conductivity and corrosion resistance. This assembly is ideal for various industrial and commercial applications requiring a robust and pre-terminated cable solution.
MOLEX 2147622225 Micro-Fit 3.0 Male-to-Male Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- application: Power, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_type: Micro-Fit 3.0
- cable_length: 450.00mm
- circuits_loaded: 1
- color_resin: Red
- material_metal: Phosphor Bronze
- plating_mating: Gold (Au) - 0.762µm min
- plating_termination: Tin - 2.540µm min
- net_weight_g: 5.081
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_max: 1.85mm
- wire_size_awg: 18
- wire_cable_type: UL 10002
- current_max_per_contact_a: 8.5
- upc: 193264574919
- drawing_number: 2147621221-000
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- china_roh: D(2020)4578-DC
- halogen_free: Yes
- low_halogen: No
- use_with_housings: 43020, 43640, 44300, 46625
