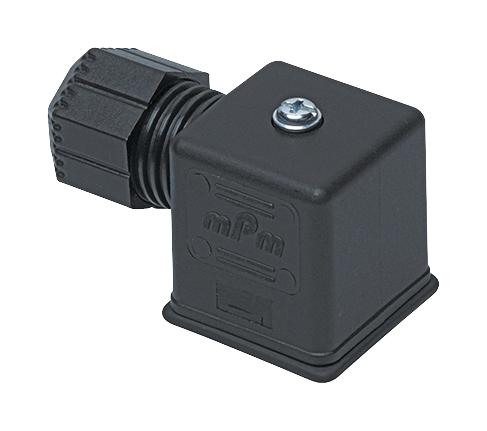

MOLEX 1212010034 DIN Valve Connector
The mPm DIN Valve Connector is an industrial-grade, 2-pole plus ground connector with a form A-18mm design, suitable for valve applications. Made from durable polyamide with silver-plated contacts, it provides reliable electrical performance rated at 250V AC and 300V DC, with a maximum current of 16A. Featuring IP65/IP67 protection ratings, external threading, and a 90° angled orientation, it ensures secure connections in demanding environments. This connector is RoHS compliant, halogen-free, and designed for easy field attachment, making it ideal for precise, leak-proof valve control systems in automation projects.
MOLEX 1212010034 DIN Valve Connector Specifications:
- Series: 121201
- Form: A-18mm
- IP Rating: IP65, IP67
- Material - Contact: Silver-plated brass
- Material - Connector Body: Polyamide
- Material - Coupling Nut: Brass
- Material - Plating Mating: Silver
- Cable Diameter: N/A
- Coupling Type: External Thread
- Gender: N/A
- Keyway: N/A
- Net Weight: 21.624 grams
- Orientation: 90° Angle
- Pitch - Mating Interface: 18.00 mm
- Poles: 2
- Temperature Range - Operating: -40°C to +90°C
- Wire Size AWG: N/A
- Current - Maximum per Contact: 16A
- Voltage - Maximum: 250V AC / 300V DC
- Certifications: RoHS, China RoHS, Halogen-Free, Low-Halogen
- Reference - Drawing Numbers: SD-121201-003-001
- Packaging Specification: PK-121201-C28-001
Buy the Buy Molex DIN Valve Connector Part Number 1212010034 Online
Purchase the Molex DIN Valve Connector online today for reliable performance in industrial valve applications. Featuring IP65/IP67 ratings, silver-plated contacts, and a robust polyamide housing, this connector ensures secure connections in demanding environments. With a 90° angle design, external threading, and a maximum voltage of 250V AC / 300V DC at 16A, it provides excellent electrical performance and durability. Ideal for automation and control systems, this connector combines ease of installation with high safety standards, ensuring efficient and leak-proof valve operations in your projects.
Buy Molex 1212010034 now and experience unmatched reliability and performance in valve connection applications with IP65/IP67 protection ratings.
Frequently Asked Questions
Where can I buy MOLEX 1212010034?
You can click on the BUY or RFQ button to purchase 1212010034 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1212010034?
You can download the 1212010034 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1212010034?
MOLEX
