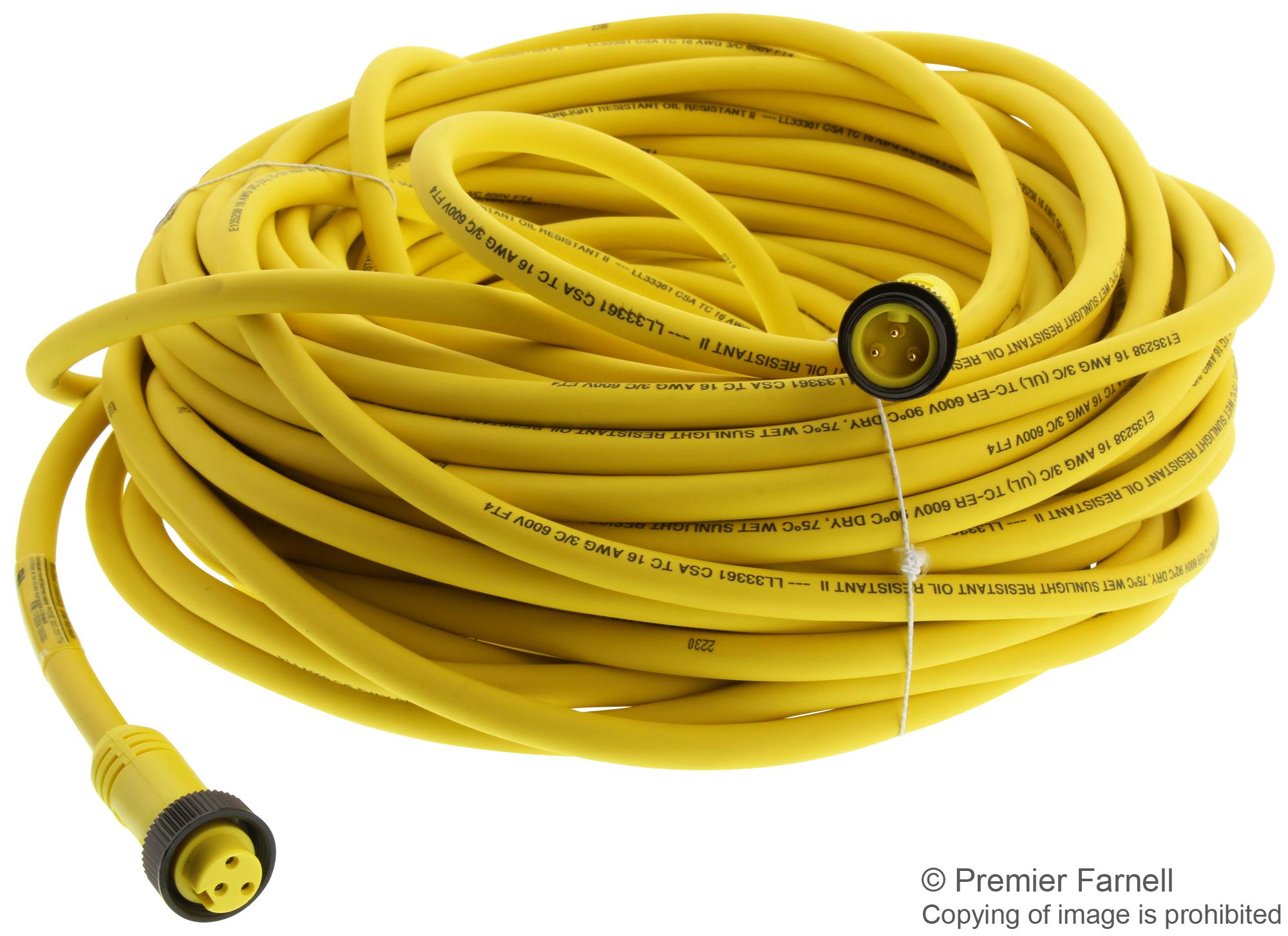

The 1300100498 from Brad is a 3 pole, male (straight) to female (straight) Mini-Change A-size double ended cord set. Industrial device wiring is easier to install and maintain With Mini-Change connectors. To ensure a consistent, low-resistance connection, the patented Quad Beam™ female contact is used. Connectors are sealed to provide IP67 protection. An anti-vibration feature prevents the coupler from loosening, even under extreme conditions.




Cable length is 30m

Cable diameter is 10.41mm (0.410")

Yellow colour TPE cable jacket

Connector body material is PVC

Threaded coupling

Copper alloy with gold plated contact

Maximum voltage is 600V, maximum current per contact is 13A

Wire size is 16AWG, TC-ER type wire

Operating temperature range from -20°C to +105°C
