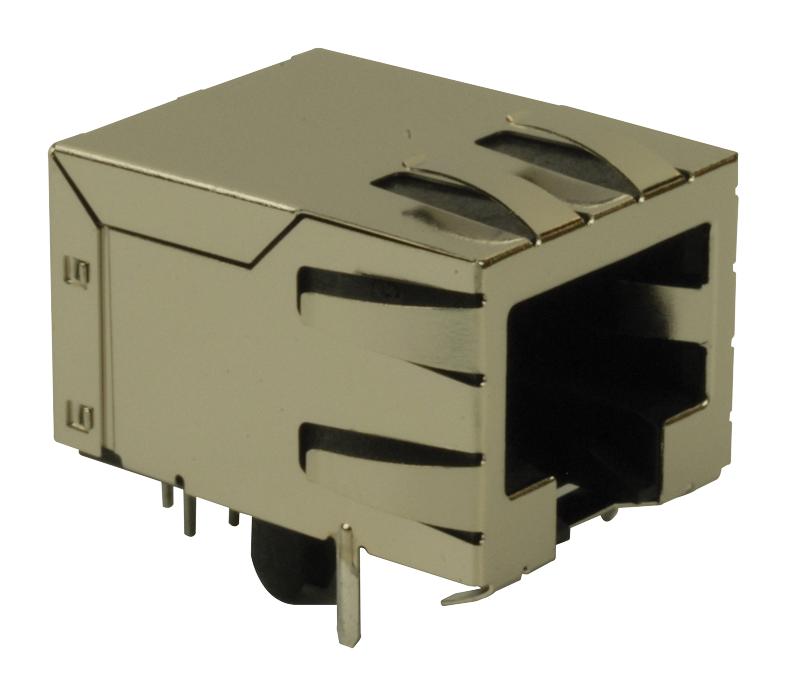

MOLEX 440500002 Ethernet Modular Jack
This modular jack is a high-performance, right-angle, low-profile Ethernet component designed for power over Ethernet (PoE) applications. Made from durable materials including brass and high-temperature thermoplastic, it features gold and tin plating for reliable electrical connections. With a pitch of 1.27mm and a port configuration of 8/8, it supports up to 1.5A current per contact and operates within a temperature range of -40°C to +85°C. Suitable for shielded panel mounting, it ensures robust connectivity and long-lasting performance in demanding networking environments.
MOLEX 440500002 Ethernet Modular Jack Specifications:
- Product Family: Modular Jacks/Plugs
- Series: 44050
- Component Type: Magnetic
- Performance Category: Power over Ethernet (PoE)
- Port Configuration: 8/8
- Pitch - Mating Interface: 1.27mm
- Material - Metal: Brass, Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Durability (mating cycles max): 500
- Voltage - Maximum: 150V AC (RMS)
- Current - Maximum per Contact: 1.5A
- Temperature Range - Operating: -40°C to +85°C
- Jack Height: 13.06mm
- Waterproof / Dustproof: No
- Surface Mount Compatible (SMC): No
- Orientation: Right Angle (Side Entry)
- Solder Process Data: Wave, Max Process Temp: 260°C, Lead-free Process Capability: Yes
- Certifications: CSA, UL
- RoHS Compliance: Yes
- Halogen-Free: No
- Grounding to Panel: Yes
- Packaging Type: Tray
- Physical Dimensions: Length varies; typical port height 13.06mm
- Connector Style: Through Hole
- Net Weight: 5.267g
Buy the Buy Molex Modular Jacks/Plugs Part Number 440500002 Online
Secure your network connection with this high-quality Ethernet modular jack, designed for PoE applications. Made from durable brass and thermoplastic, it features gold and tin plating for optimal electrical performance. Its compact 8/8 port configuration allows for efficient panel mounting with a right-angle configuration for space-saving installations. Capable of handling up to 1.5A per contact and operating in temperatures from -40°C to +85°C, this connector ensures reliable, long-lasting connectivity in various industrial and commercial networking setups. Shop online today for fast delivery and dependable performance.
Buy Molex 440500002 now and experience unmatched reliability and high-performance Ethernet connectivity in demanding networking environments.
