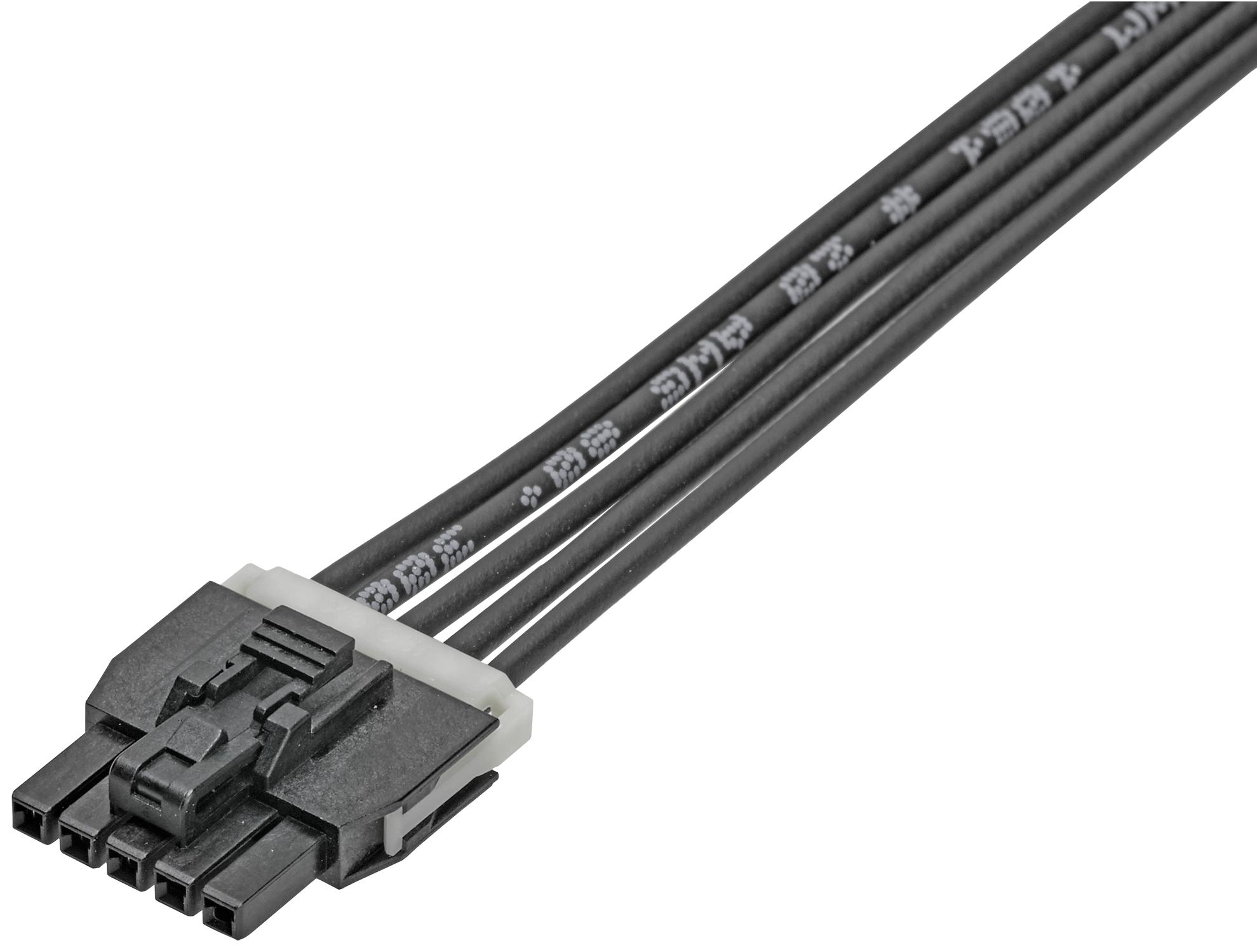

MOLEX 1451300510 Nano-Fit OTS Cable Assembly
The MOLEX 145130-0510 Nano-Fit OTS cable assembly provides a robust and compact solution for power connections in various industrial applications. This dual-ended cable assembly connects Nano-Fit connectors, offering a secure and efficient power transfer with a maximum current of 6.5A and a voltage of 250V AC (RMS). Its black nylon resin construction and matte tin plating ensure durability and corrosion resistance, making it suitable for demanding environments. The assembly is RoHS compliant and features a lock to mating part for added security.
MOLEX 1451300510 Nano-Fit OTS Cable Assembly Specifications:
- Series: 145130
- Application: Power, Wire-to-Board
- Assembly Configuration: Dual Ended
- Connectors: Nano-Fit-to-Nano-Fit
- Overview: Nano-Fit Power Connectors
- EU ELV: Not Relevant
- EU RoHS: Compliant
- REACH SVHC: Not Contained
- Cable Length: 1.0m
- Circuits Loaded: 5
- Color: Black
- Gender: Female-Female
- Lock to Mating Part: Yes
- Material - Metal: High Conductivity Copper
- Material - Plating Mating: Matte Tin
- Material - Plating Termination: Matte Tin
- Material - Resin: Nylon
- Plating min - Mating: 2.540µm
- Plating min - Termination: 2.540µm
- Mates With: Nano-Fit Headers 105309, 105311, 105324
- Net Weight: 36.460/g
- Packaging Type: Bag
- Pitch - Mating Interface: 2.50mm
- Wire Insulation Diameter: 1.57mm
- Wire Size AWG: 20
- Wire/Cable Type: UL 1061
- Current - Maximum per Contact: 6.5A
- Voltage - Maximum: 250V AC (RMS)
- Sales Drawing: 4000095320-000
