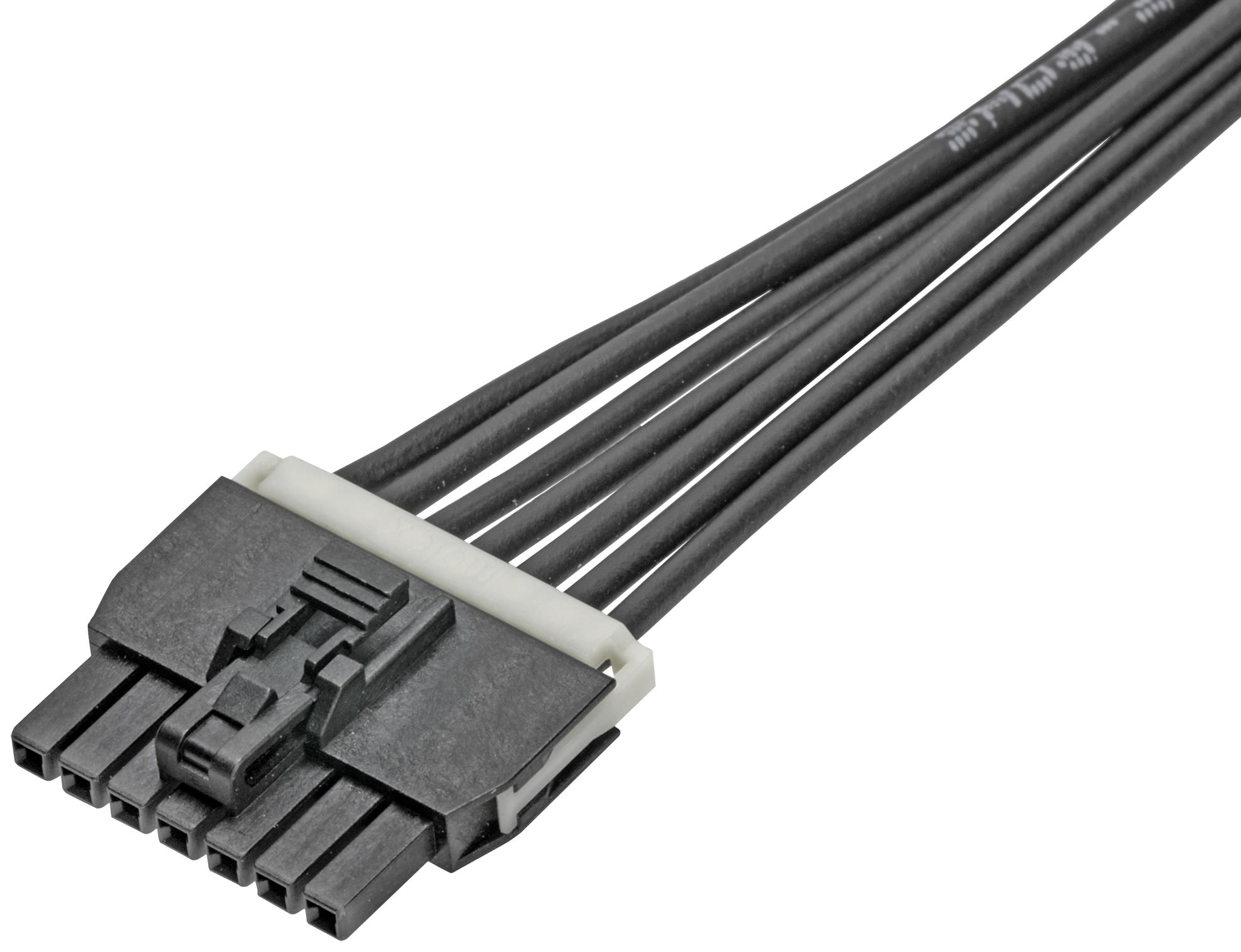

MOLEX 1451300700 Nano-Fit OTS Cable Assembly
The MOLEX 145130-0700 Nano-Fit OTS cable assembly provides a robust and compact solution for power transmission in various industrial applications. This dual-ended cable assembly connects Nano-Fit connectors, offering a secure and efficient connection. Constructed with high-conductivity copper and a nylon resin overmold, it ensures durability and reliable performance. It is RoHS compliant and designed for wire-to-board applications, making it suitable for a wide range of electronic devices and systems.
MOLEX 1451300700 Nano-Fit OTS Cable Assembly Specifications:
- Overview: Nano-Fit Power Connectors
- Length: 75.00mm
- Circuits: 7
- Color: Black
- Application: Power, Wire-to-Board
- Mates With: Nano-Fit Headers 105309, 105311, 105329
- Current - Maximum per Contact: 6.5A
- Voltage - Maximum: 250V AC (RMS)
- Material - Metal: High Conductivity Copper
- Material - Plating Mating: Matte Tin
- Material - Plating Termination: Matte Tin
- Material - Resin: Nylon
- Pitch - Mating Interface: 2.50mm
- Plating min - Mating: 2.540µm
- Plating min - Termination: 2.540µm
- Wire Insulation Diameter: 1.57mm
- Wire Size AWG: 20
- Wire/Cable Type: UL 1061
- Net Weight: 7.716/g
- Gender: Female-Female
