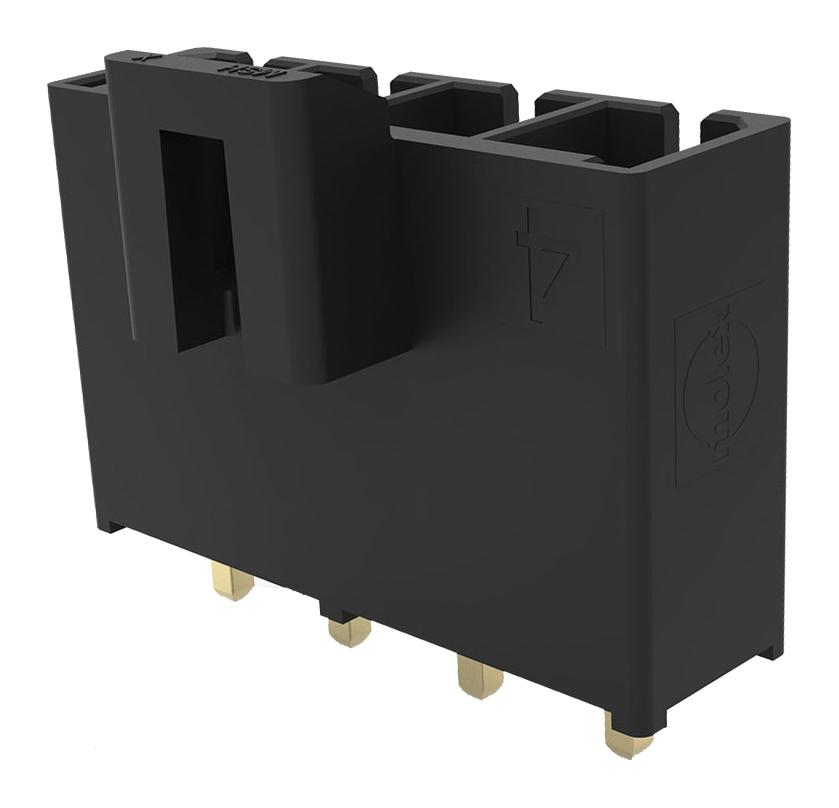

MOLEX 2002411114 Vertical Header Connector
The MOLEX 200241-1114 is a Mega-Fit vertical header connector designed for robust power and wire-to-board connections. With a 5.70mm pitch and 4 circuits, it provides a secure and reliable interface. The matte tin plating ensures excellent solderability and corrosion resistance. Constructed with a high conductivity copper base, liquid crystal polymer resin, and rated for a maximum current of 23.5A and voltage of 600V AC/DC, this connector is ideal for demanding industrial applications requiring durability and performance. It is RoHS compliant and features a vertical orientation for space-saving designs.
MOLEX 2002411114 Vertical Header Connector Specifications:
- Product Family: Mega-Fit
- Application: Power, Wire-to-Board
- Current-Max: 23.5A
- Datasheet Order No: 987650-5401
- Pitch-Mating: 5.70mm
- Circuits (maximum): 4
- Color - Resin: Black
- Durability (mating cycles max): 20
- Glow-Wire Capable: Yes
- Guide to Mating: No
- Keying to Mating Part: None
- Lock to Mating Part: Yes
- Material - Metal: High Conductivity Copper
- Material - Plating: Matte Tin
- Mating Material - Plating: Matte Tin
- Material - Resin: Liquid Crystal Polymer
- Net Weight: 2.710/g
- Number of Rows: 1
- Orientation: Vertical
- PC Tail Length: 3.23mm
- PCB Locator: No
- PCB Retention: Yes
- PCB Thickness - Recommended: 1.58mm, 2.36mm
- Packaging Type: Tray
- Pitch - Termination: 5.70mm
- Plating min - Mating: 1.524µm
- Plating min - Termination: 2.540µm
- Polarized to Mating Part: Yes
- Polarized to PCB: Yes
- Temperature Range - Operating: -40° to +105°C, -40° to +120°C
- Termination Interface: Style: Through Hole
- Voltage - Maximum: 600V AC (RMS)/DC
