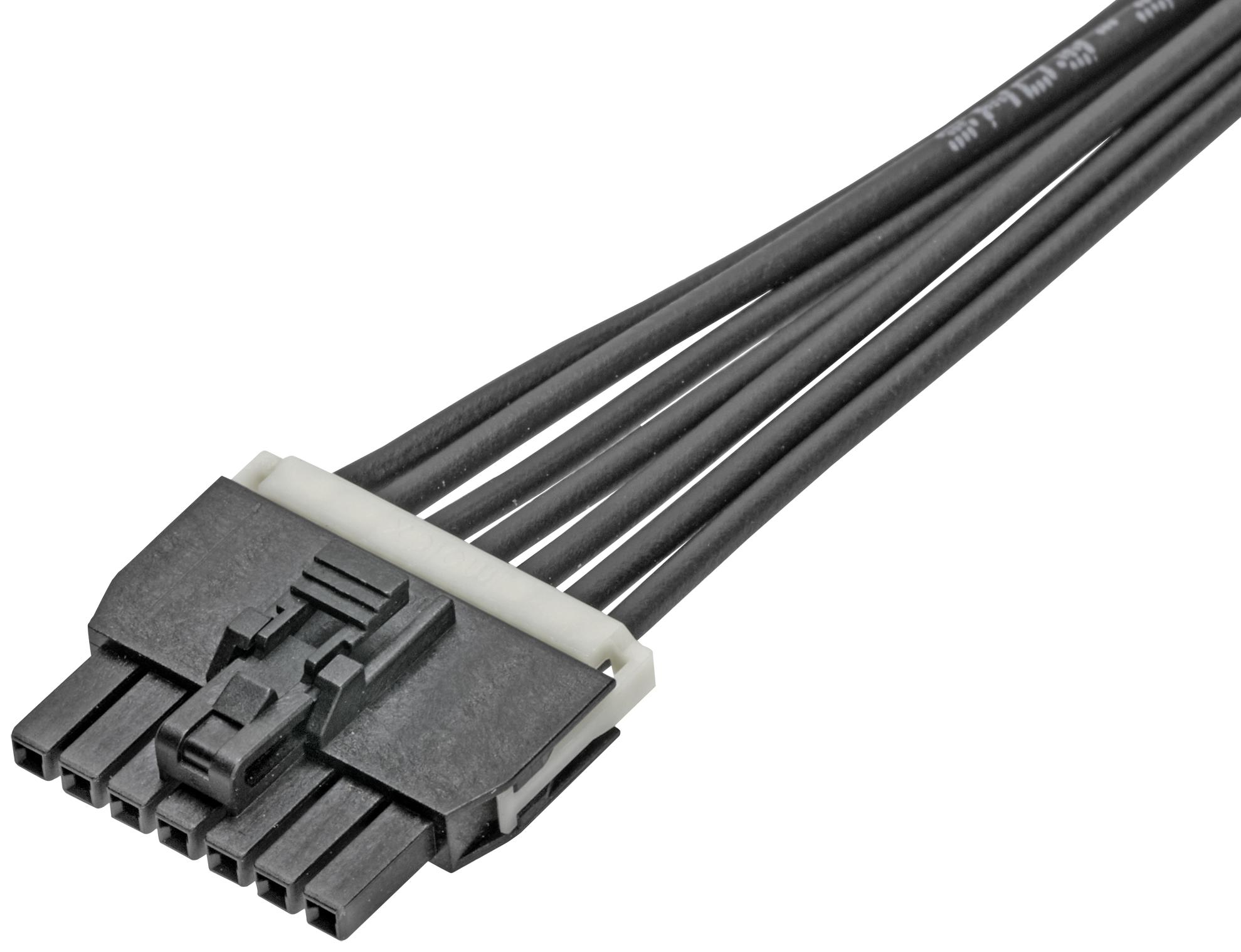

MOLEX 1451300703 Nano-Fit Cable Assembly
The MOLEX 145130-0703 Nano-Fit power connector cable assembly provides a robust and compact solution for power transmission in various applications. This OTS (Off-the-Shelf) cable assembly connects Nano-Fit connectors, offering a reliable connection with a maximum current rating of 6.5A and a maximum voltage of 250V AC (RMS). Its black nylon resin overmold and matte tin plating ensure durability and optimal performance. Ideal for wire-to-board applications, this assembly simplifies integration and reduces assembly time.
MOLEX 1451300703 Nano-Fit Cable Assembly Specifications:
- Overview: Nano-Fit Power Connectors
- Series: 145130
- Application: Power, Wire-to-Board
- Configuration: Dual Ended
- Connectors: Nano-Fit-to-Nano-Fit
- Overmolded: No
- Length: 300.00mm
- Circuits: 7
- Color: Black
- Gender: Female-Female
- Material - Metal: High Conductivity Copper
- Material - Plating Mating: Matte Tin
- Material - Plating Termination: Matte Tin
- Material - Resin: Nylon
- Pitch - Mating Interface: 2.50mm
- Plating min - Mating: 2.540µm
- Plating min - Termination: 2.540µm
- Wire Insulation Diameter: 1.57mm
- Wire Size AWG: 20
- Wire/Cable Type: UL 1061
- Current - Maximum per Contact: 6.5A
- Voltage - Maximum: 250V AC (RMS)
- Net Weight: 18.221/g
Buy the 145130-0703 MOLEX Nano-Fit Cable Assembly | myMectronic
Purchase the MOLEX 145130-0703 Nano-Fit Cable Assembly securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 1451300703?
You can click on the BUY or RFQ button to purchase 1451300703 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1451300703?
You can download the 1451300703 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1451300703?
MOLEX
