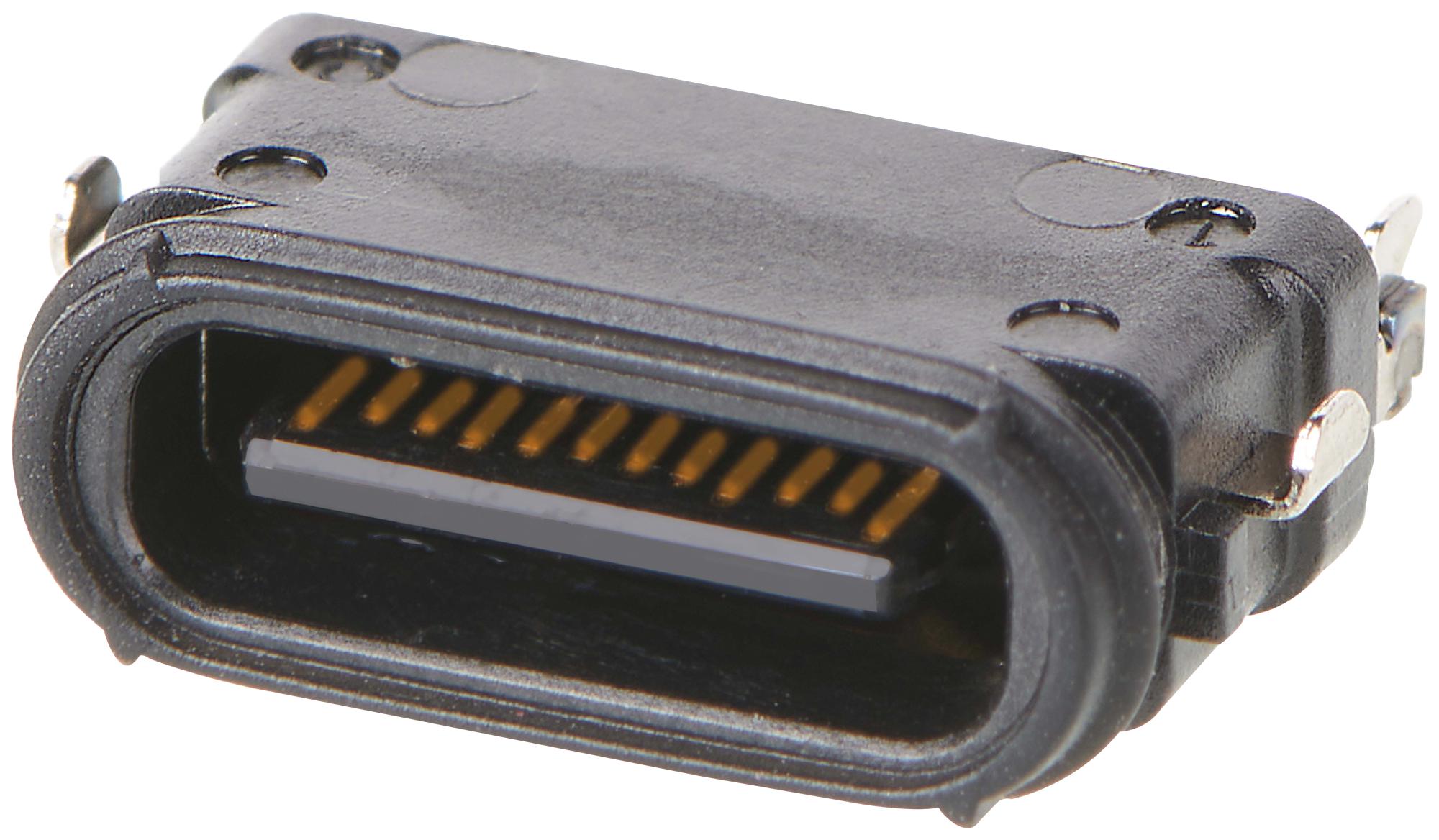

MOLEX 2024100002 USB Type C Receptacle
The MOLEX 202410-0002 is a USB Type C receptacle designed for robust wire-to-board connections. This right-angle, mid-mount connector offers surface mount compatibility and utilizes 0.75µm gold plating for enhanced signal integrity and durability. It's engineered for applications requiring a waterproof and reliable USB connection, meeting RoHS compliance standards. The connector supports up to 24 circuits and is ideal for applications demanding high-performance data transfer and power delivery.
MOLEX 2024100002 USB Type C Receptacle Specifications:
- Product Family: I/O Connectors
- Application: Wire-to-Board
- Circuits (Loaded): 24
- Circuits (maximum): 24
- Durability (mating cycles max): 10000
- Gender: Female
- Color: Black
- Material - Metal: Copper Alloy
- Material - Plating Mating: Gold
- Material - Plating Termination: Gold
- Material - Resin: High Temperature Thermoplastic
- Net Weight: 0.482/g
- Number of Rows: 2
- Orientation: Right Angle
- PCB Locator: Yes
- Polarized to Mating Part: No
- Polarized to PCB: Yes
- Ports: 1
- Pitch - Mating Interface: 0.50mm
- Pitch - Termination Interface: 0.50mm
- Plating min - Mating: 0.750µm
- Plating min - Termination: 0.025µm
- PCB Thickness - Recommended: 0.60mm, 0.70mm
- Packaging Type: Embossed Tape on Reel
- Panel Mount: Yes
- Temperature Range - Operating: -40° to +85°C
- Current - Maximum per Contact: 6.0A
- Voltage - Maximum: 30V AC
- Waterproof / Dustproof: Yes
- Shielded: Yes
