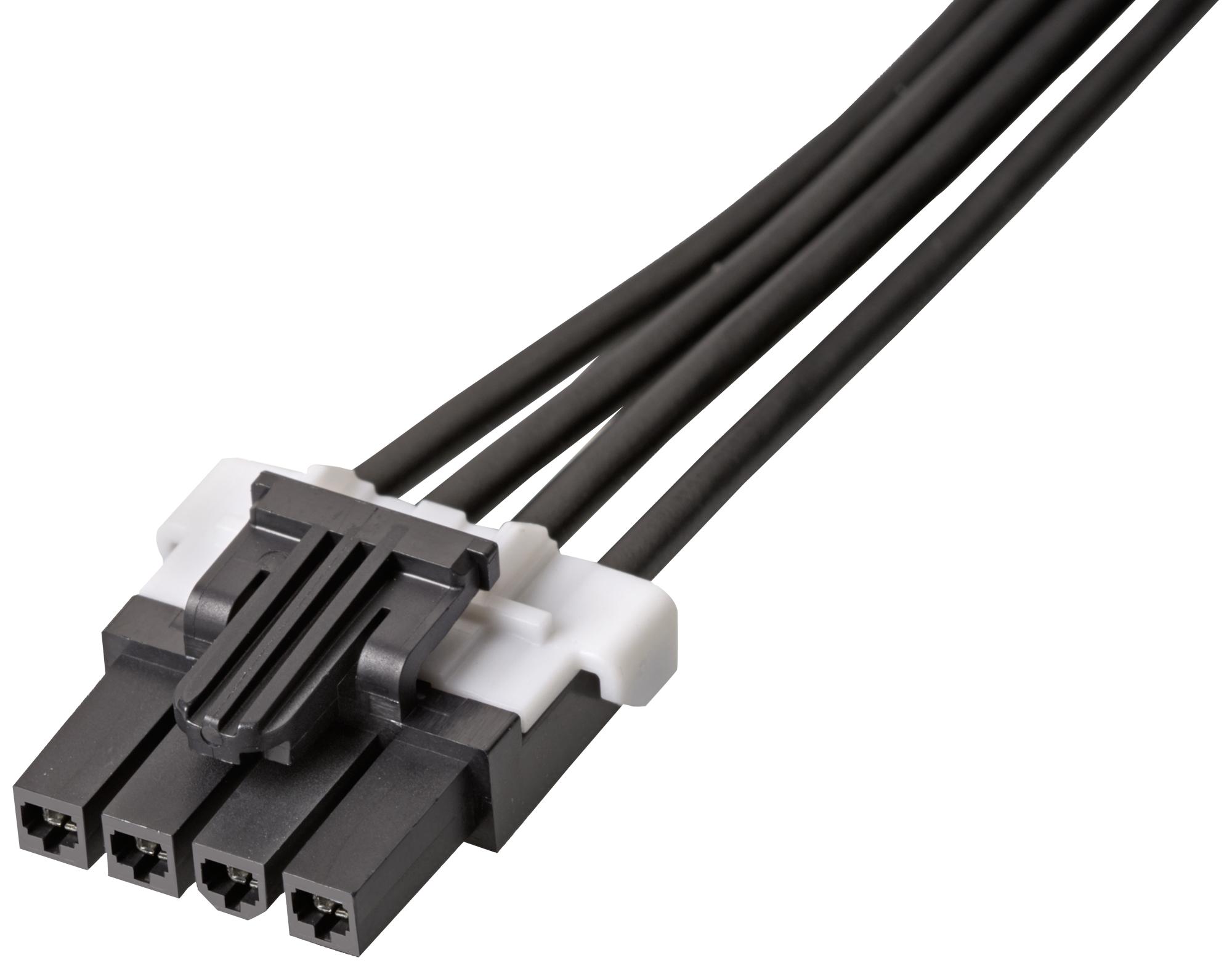

MOLEX 1451350403 Mini-Fit TPA2 Cable Assembly
The MOLEX 145135-0403 is an off-the-shelf discrete cable assembly designed for reliable power transmission in various applications. It connects two Mini-Fit TPA2 connectors, offering a robust and convenient solution for wire-to-board and wire-to-wire connections. The assembly features a 300mm length, 4 circuits, and a black nylon resin overmold for enhanced durability and insulation. It is RoHS compliant and suitable for applications requiring a secure and efficient power connection.
MOLEX 1451350403 Mini-Fit TPA2 Cable Assembly Specifications:
- overview: Off-the-Shelf (OTS) Discrete Cable Assemblies
- description: Mini-Fit TPA2-to-Mini-Fit TPA2 Off-the-Shelf (OTS) Cable Assembly, Single Row, 300.00mm Length, 4 Circuits, Black
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Mini-Fit TPA2 Both Ends
- overmolded: No
- cable_length: 300.00mm
- circuits_loaded: 4
- color_resin: Black
- material_metal: Phosphor Bronze
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: Nylon
- net_weight: 24.867/g
- packaging_type: Bag
- pitch_mating_interface: 4.20mm
- plating_min_mating: 2.500µm
- plating_min_termination: 2.500µm
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.98-3.14mm
- wire_size_awg: 16
- wire_cable_type: UL 1061
- current_maximum_per_contact: 11.0A
- voltage_maximum: 600V AC/DC
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained Per ED/61/2018
- halogen_free_status: Not Low-Halogen
- mates_with_housing: 200471, 200488, 5559, 5566, 5569
- drawing_number: 4000095326-000
