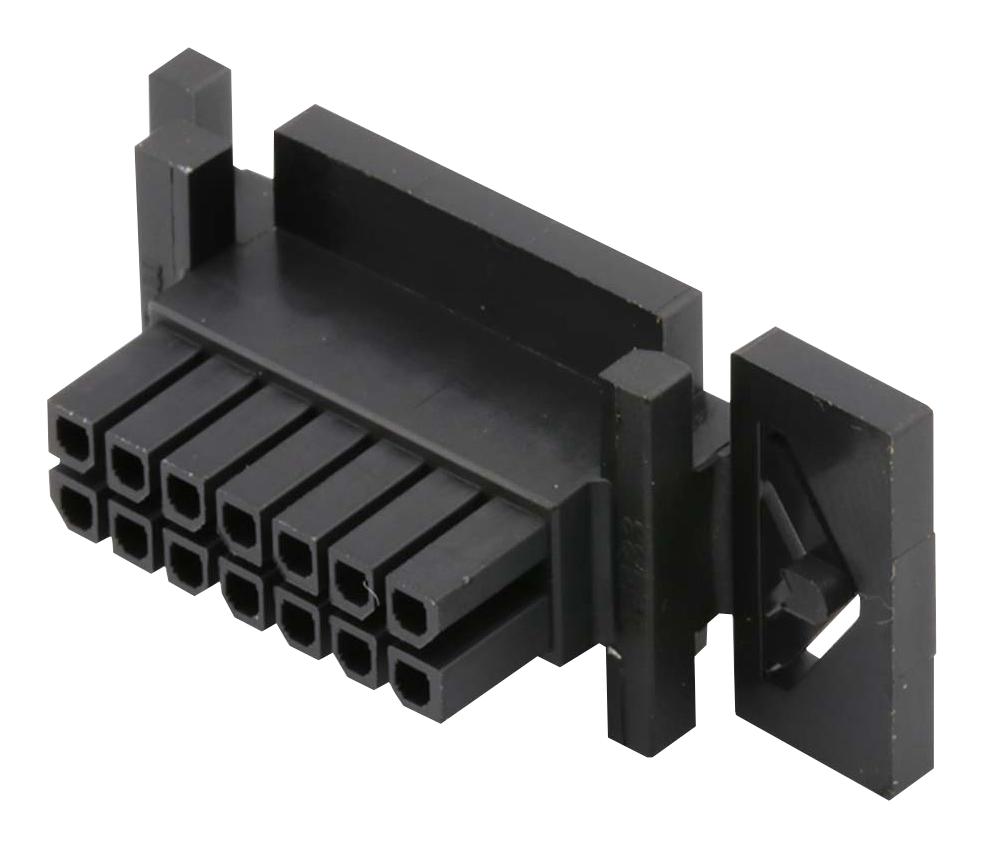

MOLEX 441331400 Micro-Fit Receptacle Housing
The Micro-Fit BMI Receptacle Housing is a durable, panel-mount connector designed for electrical and electronic applications. Made from UL-rated polyester with a 94V-0 flammability rating, it features a dual-row configuration with 14 circuits, ensuring reliable connections in power and wire-to-board assemblies. It is compatible with Micro-Fit 3.0 system components, including vertical and right-angle headers and panel mount plugs. Certified by UL and CSA, it operates within a temperature range of -40°C to +105°C, making it suitable for demanding environments. Its compact design and stackability facilitate versatile installation options.
MOLEX 441331400 Micro-Fit Receptacle Housing Specifications:
- Circuits (maximum): 14
- Color - Resin: Black
- Flammability: UL 94V-0
- Gender: Receptacle
- Material - Resin: Polyester
- Temperature Range - Operating: -40°C to +105°C
- Number of Rows: 2
- Packaging Type: Bag
- Panel Mount: Yes
- Pitch - Mating Interface: 3.00mm
- Polarized to Mating Part: Yes
- Glow-Wire Capable: No
- Lock to Mating Part: No
- Net Weight: 2.892 g
- Agency Certification: UL, CSA
- RoHS Compliant: Yes
- Elv Compliant: Yes
- Material Info: Polyester, UL 94V-0
- Reference - Drawing Numbers: TS-43045-001-001, TS-43045-002-001
- Product Specification: PS-44300-001-001
Buy the Buy Molex Micro-Fit 3.0 Part Number 441331400 Online
Enhance your electrical assemblies with the high-quality Molex Micro-Fit 3.0 receptacle housing. Designed for durability and versatility, it features 14 circuits, dual-row configuration, and a panel-mount design suitable for power and wire-to-board applications. Made from UL-rated polyester with a 94V-0 flammability rating, it operates reliably from -40°C to +105°C. Certified by UL and CSA, this connector ensures safety, compliance, and easy installation for demanding environments. Purchase online now for dependable performance.
Order your Molex Series Micro-Fit 3.0 receptacle housing with 14 circuits today and ensure reliable, safe power connections for your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 441331400?
You can click on the BUY or RFQ button to purchase 441331400 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 441331400?
You can download the 441331400 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 441331400?
MOLEX
