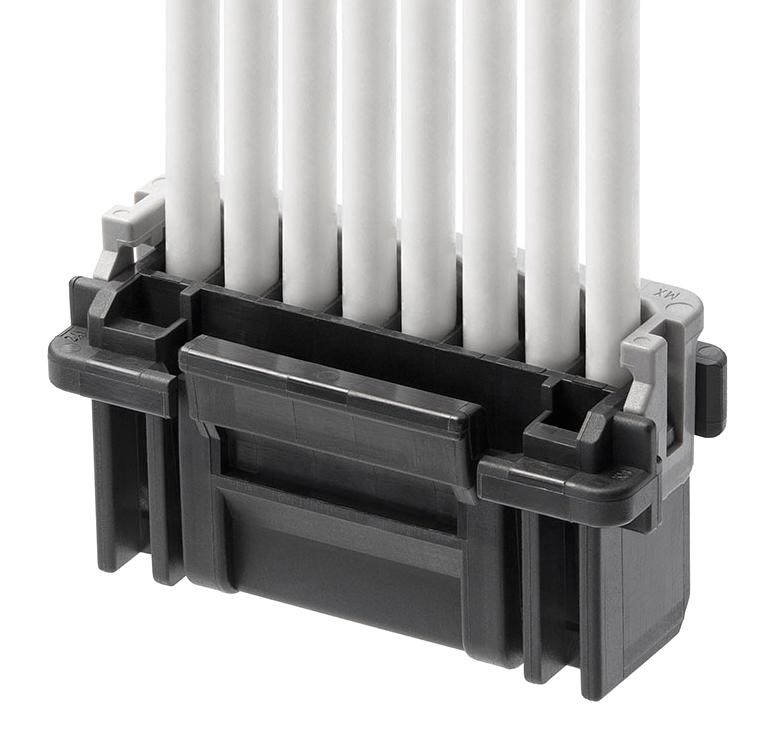

MOLEX 2127242061 Micro-One Wire-to-Board Connector
The MOLEX 2127242061 is a Micro-One wire-to-board receptacle housing within the 212724 series. Designed for power applications, this connector provides a robust and reliable connection between wires and printed circuit boards. It features 6 circuits, a 2.00mm pitch, and is glow-wire capable, ensuring suitability for various industrial environments. The housing is constructed from polyamide resin and offers a black color finish. It is polarized to the mating part and includes a lock to ensure secure mating. This component is RoHS compliant and contributes to environmentally responsible designs.
MOLEX 2127242061 Micro-One Wire-to-Board Connector Specifications:
- status: Active
- overview: Micro-One Wire-to-Board Connector System
- description: Micro-One Wire-to-Board Receptacle Housing, 2.00mm Pitch, Glow-Wire Capable, 6 Circuits
- circuits_maximum: 6
- color_resin: Black
- gender: Female
- glow_wire_capable: Yes
- keying_to_mating_part: None
- lock_to_mating_part: Yes
- material_resin: Polyamide
- net_weight: 435.550/mg
- number_of_rows: 1
- packaging_type: Bag
- panel_mount: No
- pitch_mating_interface: 2.00mm
- polarized_to_mating_part: No
- stackable: No
- temperature_range_operating: -40° to +105°C
- upc: 193264613854
- series: 212724 Series
- application: Power, Wire-to-Board
- product_family: Crimp Housings
- mates_with: Micro-One TPA Retainer 212725, MicroOne Vertical Header 217063, Micro-One Right-Angle Header 217064
- use_with: Micro-One Female Crimp Terminal 56134
- eu_elv: Not Relevant
- eu_rohs: Compliant
- china_rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
