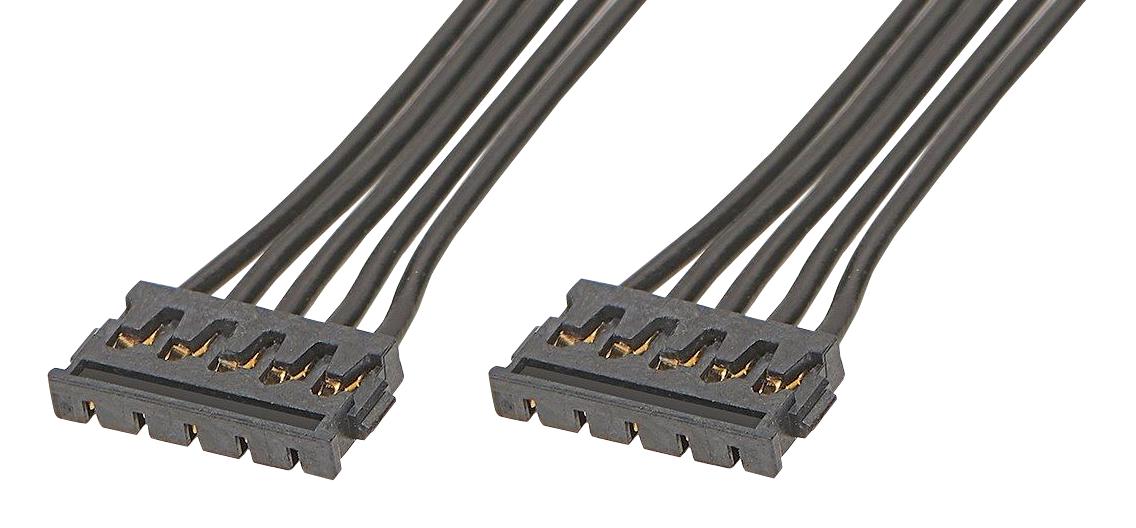

MOLEX 369200501 Wire-to-Board Connector
The Pico-EZmate connector system is a versatile wire-to-board solution ideal for compact electronic devices. This assembly features a 1.20mm pitch with a single row, 5 circuits, and a black liquid crystal polymer body. Designed for reliable electrical connections, it supports a maximum current of 1.5A per contact and a voltage up to 50V. The connectors are female-female, with gold plating for the contacts and termination. Suitable for crimp or compression termination, it ensures secure mating and durability in electronic assemblies.
MOLEX 369200501 Wire-to-Board Connector Specifications:
- Cable Length: 100.00mm
- Circuits: 5
- Color: Black
- Gender: Female-Female
- Material - Metal: Copper Alloy
- Material - Plating Mating & Termination: Gold
- Material - Resin: Liquid Crystal Polymer
- Number of Rows: 1
- Pitch - Mating Interface: 1.20mm
- Wire Insulation Diameter: 0.60-0.70mm
- Wire Size: AWG 28
- Electrical: Max Current 1.5A per contact, Max Voltage 50V AC/DC
- Packaging: Bag
- Lock to Mating Part: Yes
- Overmolded: No
- Assembly Configuration: Dual Ended Connectors
- Status: Active
- RoHS: Compliant
- Halogen-Free: No
- Connector Type: Pico-EZmate-to-Pico-EZmate
Buy the Molex 0369200501 – Reliable Wire-to-Board Connector for Industrial Applications
Enhance your electronic assemblies with the reliable Molex Pico-EZmate wire-to-board connector designed for compact applications. Featuring a 1.20mm pitch, five circuits, and gold-plated contacts, it ensures optimal electrical performance and durability. The assembly supports a maximum current of 1.5A per contact and a voltage of 50V AC/DC. Its simple crimp or compression termination method allows for quick installation. Perfect for compact electronic devices, this connector offers secure mating, RoHS compliance, and robust performance in a small form factor.
Order your Molex Series 36920 Pico-EZmate connector today and ensure secure and reliable connections in your electronic projects with ease.
Frequently Asked Questions
Where can I buy MOLEX 369200501?
You can click on the BUY or RFQ button to purchase 369200501 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 369200501?
You can download the 369200501 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 369200501?
MOLEX
