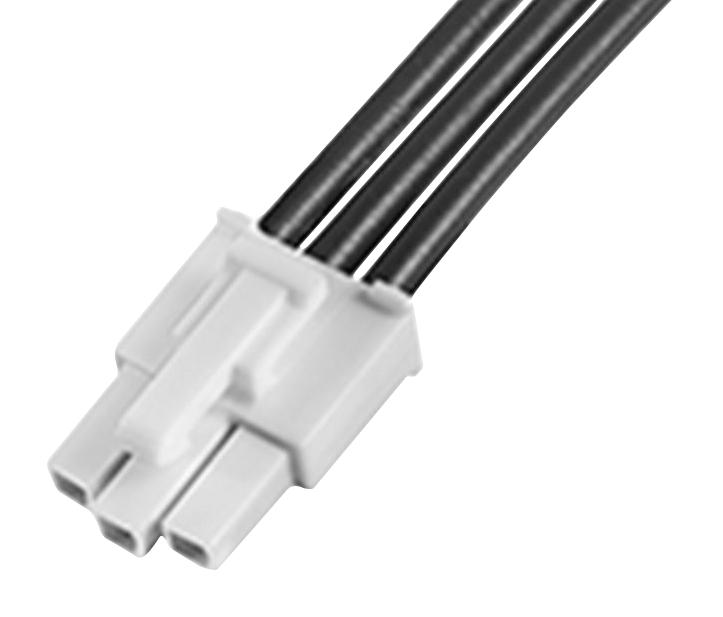

MOLEX 2153222032 Mini-Fit Jr. Cable Assembly
The MOLEX 215322-2032 is a Mini-Fit Jr. male-to-male cable assembly designed for power and wire-to-wire applications. It boasts a robust construction with brass and nylon materials, gold and tin plating for optimal conductivity and durability. This assembly is ideal for connecting power supplies to various devices and equipment, offering a secure and reliable connection with a maximum current of 9.0A and a voltage rating of 600V. Its single-row design and 4.20mm mating pitch make it compatible with a range of Mini-Fit Jr. connectors.
MOLEX 2153222032 Mini-Fit Jr. Cable Assembly Specifications:
- overview: Mini-Fit Family Power Connectors
- application: Power, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Mini-Fit Jr. Both Ends
- cable_length: 300.00mm
- circuits_loaded: 3
- color_resin: Black
- material_metal: Brass
- plating_mating: Gold (Au)
- plating_termination: Tin
- material_resin: Nylon
- net_weight_g: 24.120
- number_of_rows: 1
- packaging_type: Bag
- pitch_mating_interface: 4.20mm
- plating_min_mating: 0.762µm
- plating_min_termination: 2.032µm
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_mm: 1.80-3.10mm
- wire_size_awg: 16
- wire_cable_type: UL 1015
- current_maximum_per_contact_a: 9.0
- voltage_maximum_v: 600
- upc: 193264597437
- material_info: Not Contained Per - D(2020)4578-DC (25 June 2020)
- halogen_free_status: Not Low-Halogen
- mates_with: Mini-Fit Jr. Receptacle Housing 5557, Mini-Fit TPA2 Cable Assembly 145135
- drawing_number: 2153222031-000
