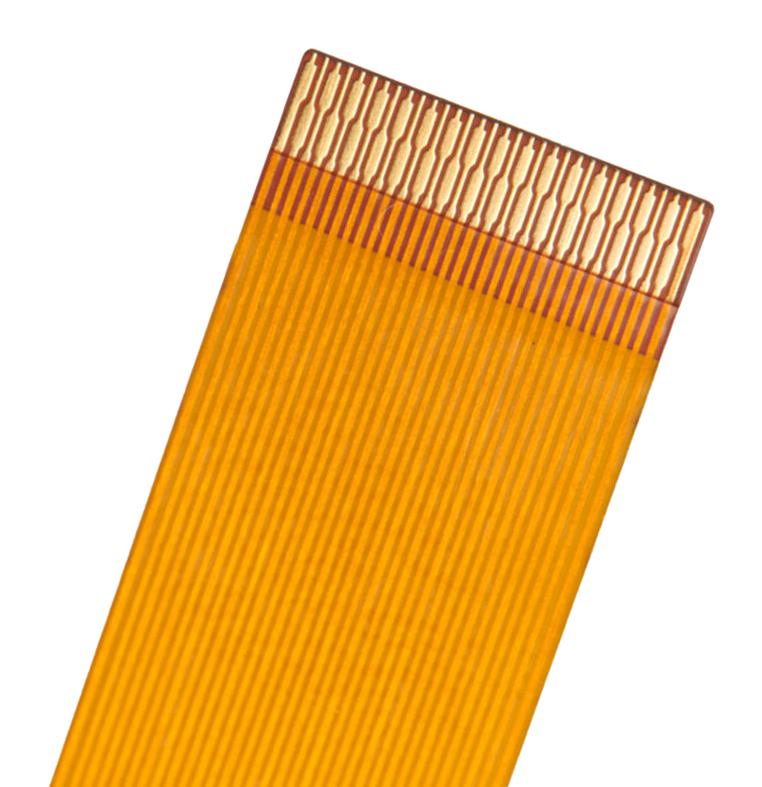

MOLEX 150140461 Premo-Flex FFC Jumper
The MOLEX 15014-0461 is a Premo-Flex Flat-Flexible Circuit (FFC) cable jumper designed for connecting flexible circuits. This jumper features a 0.25mm pitch, 61 circuits, and gold plating for reliable signal transmission. It is suitable for applications requiring a flexible and compact connection solution, commonly found in consumer electronics, industrial equipment, and automotive systems. The jumper's cable length of 101.60mm provides sufficient reach for various layout configurations.
MOLEX 150140461 Premo-Flex FFC Jumper Specifications:
- status: Active
- overview: Premo-Flex Flat-Flexible Circuit (FFC) Cable Jumpers
- description: 0.25mm Pitch Premo-Flex FFC Jumper, Same Side Contacts (Type A), 101.60mm Cable Length, Gold (Au) Plating, 61 Circuits
- product_family: Cable
- series: 15014
- crimp_quality_equipment: Yes
- upc: 191130093526
- cable_length: 101.60mm
- circuits_loaded: 61
- plating_mating: Gold
- net_weight: 1.000/g
- packaging_type: Bag
- pitch_mating_interface: 0.25mm
- temperature_range_operating: -40° to +105°C
- wire_size_awg: N/A
- wire_cable_type: Flat Flex Cable
- current_maximum_per_contact: 0.2A
- voltage_maximum: N/A
- eu_elv: Not Relevant
- eu_rohs: Compliant
- china_rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Low-Halogen
- rohs_phalates: Not Contained
- mates_with: Easy-On FFC/FPC Connector5020786162
- product_specification: 1501400001-000
- sales_drawing: 150140001-000
