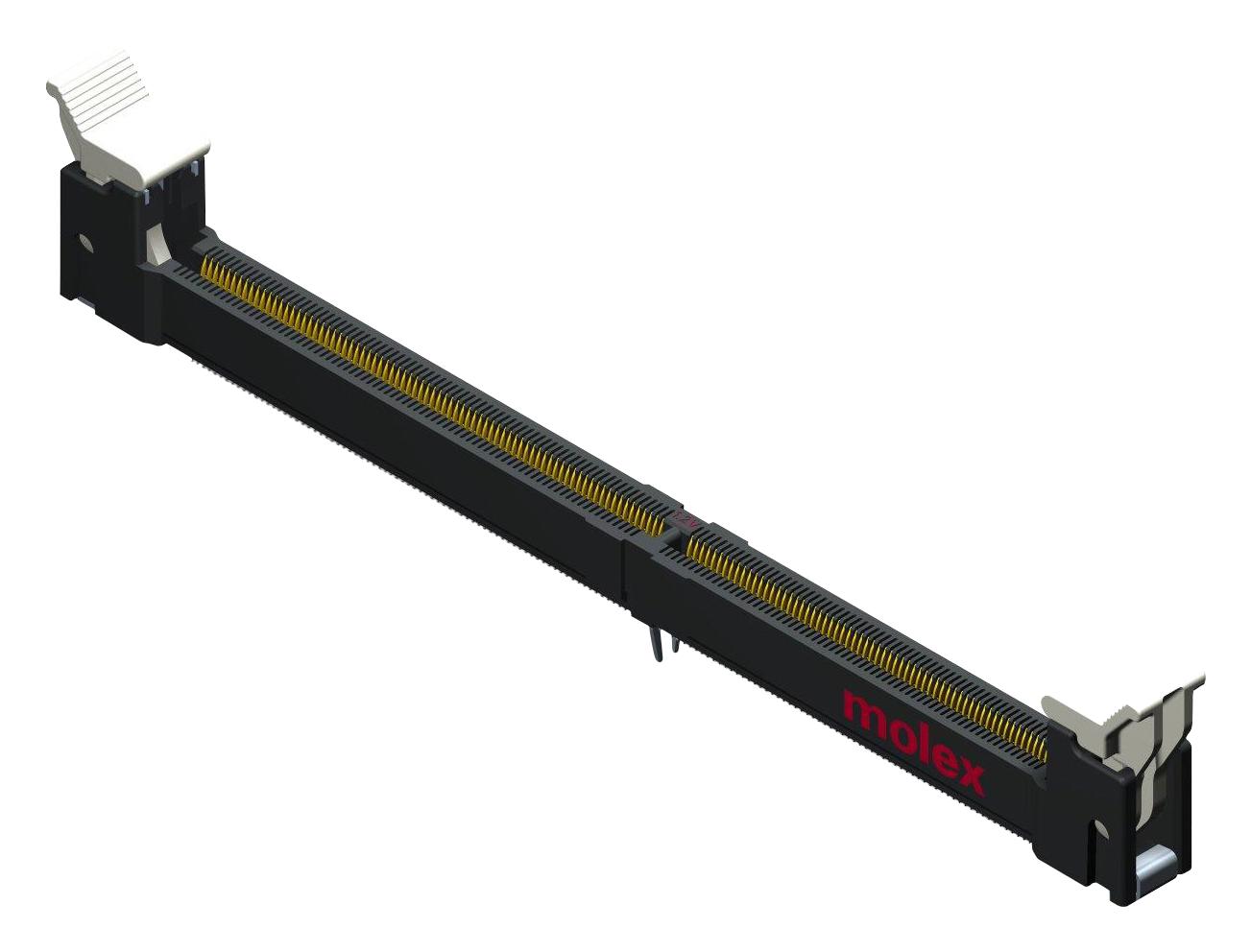

MOLEX 1511050003 DDR4 MiniDIMM Socket
The 0.50mm Pitch DDR4 miniDIMM Socket is a surface-mount, vertical component designed for high-density memory modules. It features natural off-white latches, a center forklock, and a pick and place cap for easy manufacturing. With 288 circuits, it supports a maximum of 288 circuits and ensures reliable connections with gold over nickel plating. The socket operates efficiently across -55°C to +85°C, with a maximum current of 0.75A per contact and a voltage of 29V AC/DC, making it ideal for modern DDR4 memory applications in compact electronic systems.
MOLEX 1511050003 DDR4 MiniDIMM Socket Specifications:
- Pitch - Mating Interface: 0.50mm
- Number of Circuits (Loaded): 288
- Number of Circuits (Maximum): 288
- Durability: 25 mating cycles
- Entry Angle: Vertical (Top Entry)
- Flammability: 94V-0
- Housing Color: Black
- Keying to Mating Part: None
- Latch Color: Natural (Off-White)
- Material - Metal: Copper Alloy
- Material - Plating Mating: Gold over Nickel
- Material - Plating Termination: Tin over Nickel
- Material - Resin: Liquid Crystal Polymer
- Net Weight: 3.834 grams
- PCB Locator: Yes
- PCB Retention: Yes
- Packaging Type: Tray
- Temperature Range - Operating: -55°C to +85°C
- Current - Maximum per Contact: 0.75A
- Voltage - Maximum: 29V AC/DC
- Termination Interface: Surface Mount
- Process Temperature Max.: 260°C
- Lead-free Process Capability: Reflow
Buy the Molex 1511050003 – Reliable DDR4 miniDIMM Socket for Industrial Applications
Discover the dependable DDR4 miniDIMM socket designed for industrial applications, offering 288 circuits, vertical surface mount installation, and high durability. Featuring natural off-white latches, gold over nickel plating, and support for operating temperatures from -55°C to +85°C, this socket ensures reliable memory module connections. It is ideal for compact systems requiring high performance and long service life. With easy pick and place cap, center forklock, and tray packaging, purchase online today to enhance your electronic projects' reliability and efficiency with this versatile, RoHS-compliant socket.
Buy Molex 1511050003 now and experience unmatched reliability and performance in memory module connections, suitable for high-density, compact electronic devices.
Frequently Asked Questions
Where can I buy MOLEX 1511050003?
You can click on the BUY or RFQ button to purchase 1511050003 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 1511050003?
You can download the 1511050003 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 1511050003?
MOLEX
