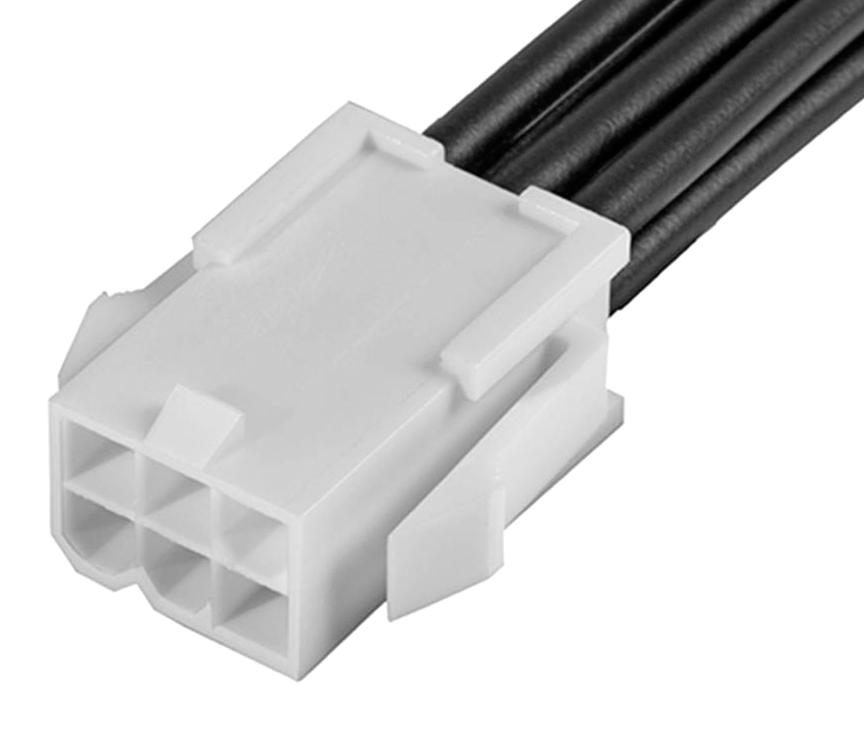

MOLEX 2153251062 Mini-Fit Jr. Female-to-Female
The MOLEX 215325-1062 is a Mini-Fit Jr. female-to-female cable assembly designed for reliable power and signal transmission in various applications. This assembly features a dual-row configuration with 6 circuits, ensuring efficient connectivity. The tin plating on both mating and termination interfaces provides excellent conductivity and corrosion resistance. Constructed with a durable nylon resin and brass material, this cable assembly is ideal for wire-to-board and wire-to-wire connections in industrial equipment, automotive systems, and consumer electronics.
MOLEX 2153251062 Mini-Fit Jr. Female-to-Female Specifications:
- overview: Mini-Fit Family Power Connectors
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Mini-Fit Jr.
- cable_length: 300.00mm
- circuits_loaded: 6
- color_resin: Black
- material_metal: Brass
- material_plating_mating: Tin (Sn)
- material_plating_termination: Tin (Sn)
- material_resin: Nylon
- net_weight: 45.297/g
- number_of_rows: 2
- pitch_mating_interface: 4.20mm
- plating_min_mating: 0.889µm
- plating_min_termination: 0.889µm
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_AWG: 16
- wire_cable_type: UL 1015
- current_max_per_contact: 9.0A
- voltage_max: 600V
- upc: 193264589739
- mates_with: ['5559', '5566', '5569', '43810', '44068', '44281', '87427', '42404', '42440']
- drawing_number: 2153251061-000
