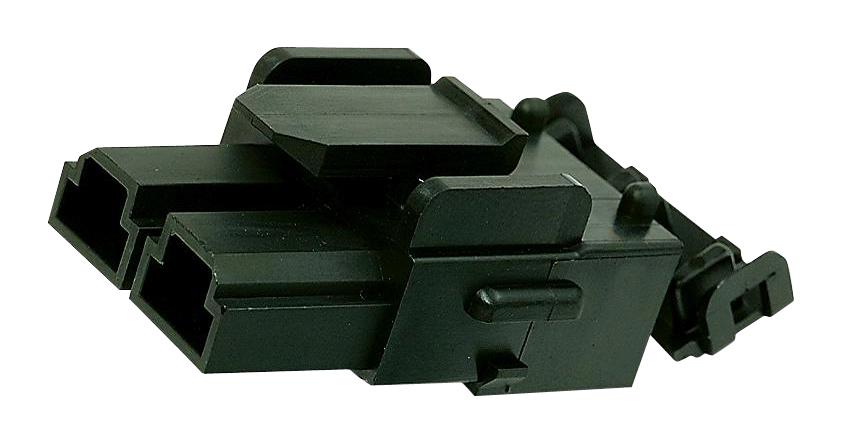

MOLEX 428160512 Power Receptacle Housing
Mini-Fit Sr.™ Power Receptacle Housing features a 10.00mm pitch with a single row of 5 circuits, designed for wire-to-board power connections. Made from flame-retardant polyester with UL 94V-0 rating, it is compatible with 50A maximum current per contact and operates within a temperature range of -40°C to +105°C. This female connector is polarized, stackable, and suitable for panel mounting in various power applications. It ensures reliable mating with compatible headers and crimp terminals, supporting robust and safe electrical connections in industrial and electronic assemblies.
MOLEX 428160512 Power Receptacle Housing Specifications:
- Pitch - Mating Interface: 10.00mm
- Circuits (maximum): 5
- Color - Resin: Black
- Flammability: UL 94V-0
- Gender: Female
- Glow-Wire Compliant: Yes
- Lock to Mating Part: Yes
- Material - Resin: Polyester
- Temperature Range - Operating: -40°C to +105°C
- Current - Maximum per Contact: 50A
- Net Weight: 10.120 grams
- Packaging Type: Bag
- Number of Rows: 1
- Stackable: No
- Panel Mount: No
- Polarized to Mating Part: Yes
Buy the Buy Molex Mini-Fit Sr. Power Receptacle Housing Part Number 42816-0512 Online
Purchase the Molex Mini-Fit Sr. Power Receptacle Housing 42816-0512 online for secure, high-current power connections in industrial and electronic applications. This 10mm pitch, five-circuit female connector features UL 94V-0 flame rating, stackability, polarization, and a temperature range of -40°C to +105°C. Made from durable polyester material, it ensures reliable performance and safe operation. Perfect for wire-to-board connections, it works seamlessly with compatible headers and terminals, providing robust and long-lasting electrical connections in a variety of manufacturing setups.
Get Molex 42816-0512 today—designed for reliable power connections with high current capacity and safety features for industrial electronics.
Frequently Asked Questions
Where can I buy MOLEX 428160512?
You can click on the BUY or RFQ button to purchase 428160512 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 428160512?
You can download the 428160512 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 428160512?
MOLEX
