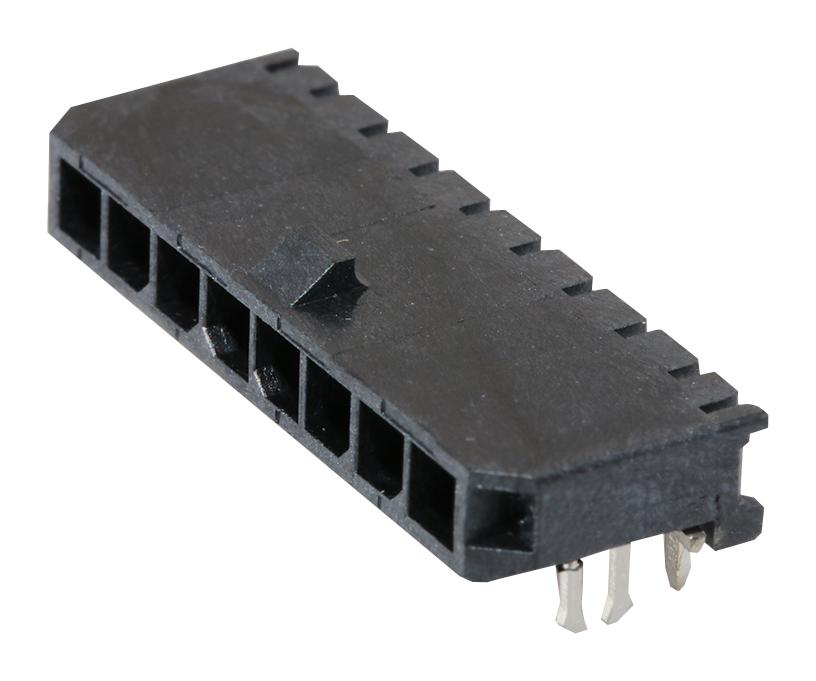

MOLEX 436500803 Micro-Fit 3.0 Header
The MOLEX 43650-0803 is a Micro-Fit 3.0 connector designed for robust wire-to-board connections in various industrial applications. This right-angle header features 8 circuits and a 3.00mm pitch, offering a compact and efficient solution. The tin plating ensures excellent solderability and corrosion resistance. It is manufactured with materials that meet stringent flammability and heat resistance standards (GWIT 775°C, GWFI >850°C), making it suitable for applications requiring high reliability and safety. Customers should perform their own suitability testing to ensure optimal performance in their specific application.
MOLEX 436500803 Micro-Fit 3.0 Header Specifications:
- Product Family: Micro-Fit 3.0 Connector System
- Description: Micro-Fit 3.0 Right-Angle Header, 3.00mm Pitch, Single Row, 8 Circuits, with PCB Press-fit Metal Retention Clip, Tin, Glow-Wire Capable, Black
- Application: Power, Wire-to-Board
- Circuits (Loaded): 8
- Circuits (maximum): 8
- Color - Resin: Black
- Durability (mating cycles max): 30
- Flammability: 94V-0
- Glow-Wire Capable: Yes
- Mated Height: 6.98mm
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Net Weight: 1.559/g
- Number of Rows: 1
- Orientation: Right Angle
- PCB Locator: Yes
- PCB Retention: Yes
- PCB Thickness - Recommended: 1.60mm
- Pitch - Mating Interface: 3.00mm
- Plating min - Mating: 2.540µm
- Plating min - Termination: 2.540µm
- Polarized to PCB: Yes
- Shrouded: Fully
- Stackable: No
- Surface Mount Compatible (SMC): Yes
- Temperature Range - Operating: -40° to +105°C
- Termination Interface: Style: Through Hole
- Current - Maximum per Contact: 8.5A
- Voltage - Maximum: 600V
- Lead-free Process Capability: SMC&WAVE
- Max. Cycles at Max. Process Temperature: 003
- Process Temperature max. C: 260
