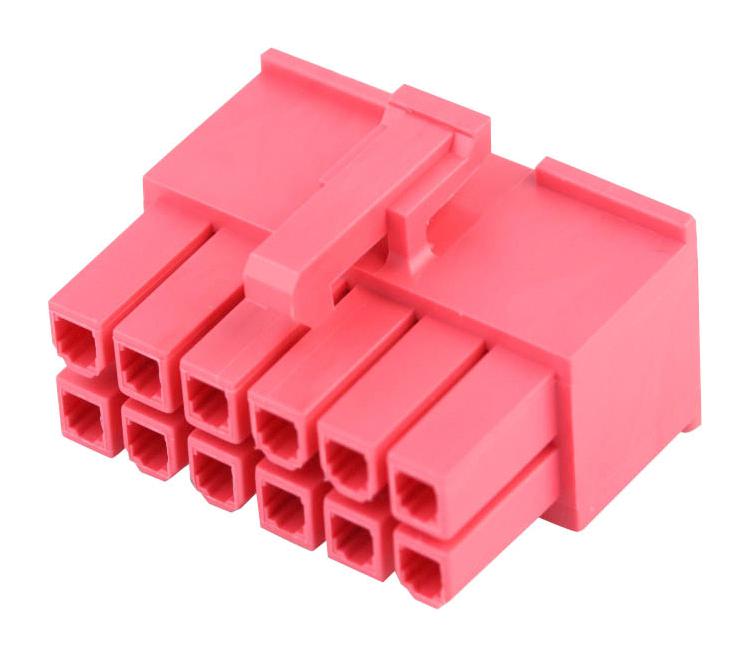

MOLEX 469921020 Mini-Fit Versa Color Receptacle
The MOLEX 46992-1020 Mini-Fit Versa Color Receptacle Housing is a versatile connector solution for a range of applications including power distribution, wire-to-board connections, and wire-to-wire harnesses. Constructed from durable nylon 6/6 and rated UL 94V-0, this housing provides reliable insulation and fire resistance. Its dual-row design accommodates 10 circuits, and the red color provides visual differentiation. The housing is glow-wire capable and features keying and locking mechanisms for secure mating. It is compatible with Mini-Fit Versa Color Plug and Header series, and designed to be used with Mini-Fit Female Crimp Terminals.
MOLEX 469921020 Mini-Fit Versa Color Receptacle Specifications:
- circuits_maximum: 10
- color_resin: Red
- gender: Receptacle
- glow_wire_capable: Yes
- keying_to_mating_part: None
- lock_to_mating_part: Yes
- material_resin: Nylon
- net_weight_g: 2.140
- number_of_rows: 2
- packaging_type: Bag
- pitch_mating_interface_mm: 4.20
- pitch_termination_interface_mm: 4.20
- polarized_to_mating_part: Yes
- temperature_range_operating_c: -40° to +105°
- upc: 195842021921
- product_family: Crimp Housings
- application: Power, Wire-to-Board, Wire-to-Wire
- material: Nylon
