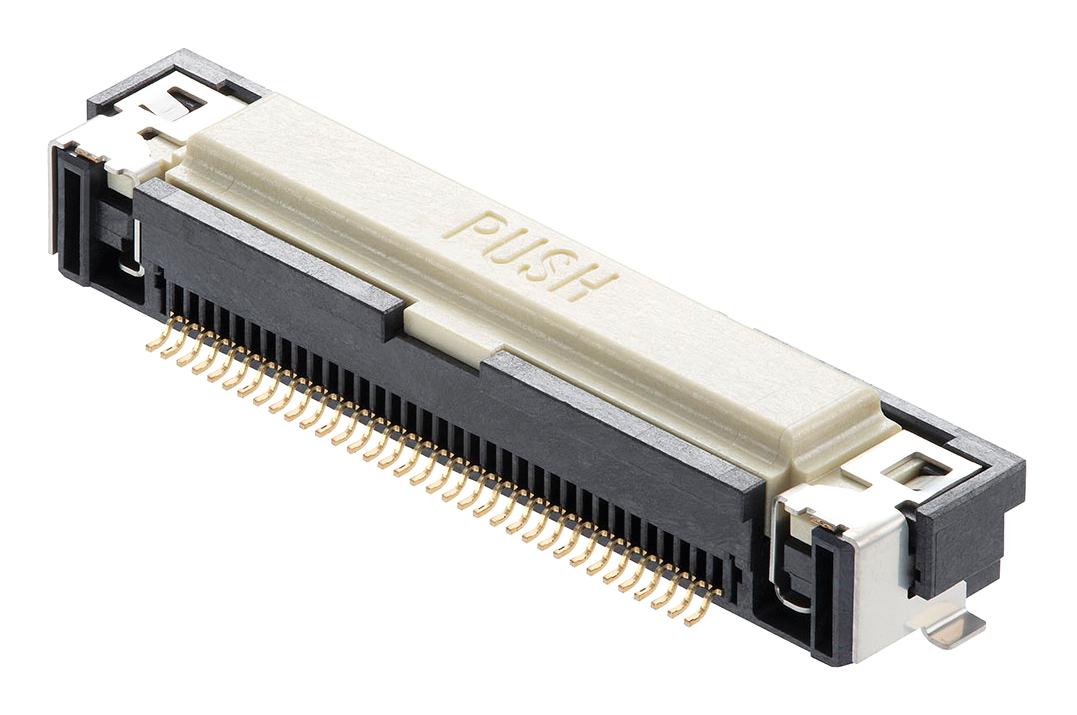

MOLEX 2004850610 FFC/FPC Connector
The 200485 series easy-On FFC/FPC one-touch connectors offer a reliable and user-friendly connection solution with a right-angle design and single-step mating process. Featuring an auto-lock nail mechanism, they provide high retention force, ensuring secure connections suitable for industrial automation, consumer electronics, automotive, and home appliances. These connectors support a 0.50mm pitch, operate in temperatures from -40°C to +105°C, and include optional ground terminals for enhanced signal integrity. Made with durable LCP housing and copper alloy contacts, they are UL94V-0 flame rated and designed for easy FFC/FPC insertion and removal with a visible release button.
MOLEX 2004850610 FFC/FPC Connector Specifications:
- Pitch - Mating Interface: 0.50mm
- Number of Circuits: 10
- Operating Temperature Range: -40°C to +105°C
- Maximum Voltage: 50V
- Maximum Current per Contact: 0.5A
- Housing Material: Liquid Crystal Polymer (LCP)
- Contact Material: Copper Alloy
- Plating on Contacts: Gold (Au)
- Mating Cycles: 20
- Orientation: Right Angle
- PCB Mounting: Surface Mount
- Packaging: Embossed Tape on Reel
- UL Flame Rating: UL94V-0
- Number of Rows: 1
- Color: Black
- Ground Terminal: Optional
- Mated Height: 446mm
Buy the Molex 2004850610 – Reliable FFC/FPC Connectors for Industrial Applications
Purchase the Molex 2004850610 series right-angle FFC/FPC connector online to benefit from quick, secure connections with a robust design. This connector features a 0.50mm pitch with an auto-lock nail mechanism, supporting up to 10 circuits and operating reliably in temperatures from -40°C to +105°C. Suitable for a variety of industries, it has a maximum voltage of 50V and current of 0.5A per contact. With a durable LCP housing, gold-plated contacts, and UL94V-0 rating, it ensures professional-grade performance and easy FFC/FPC installation for your electronic applications.
Order your Molex 2004850610 series easy-On FFC/FPC connector today and ensure secure, quick connections with high durability for industrial and electronic projects.
