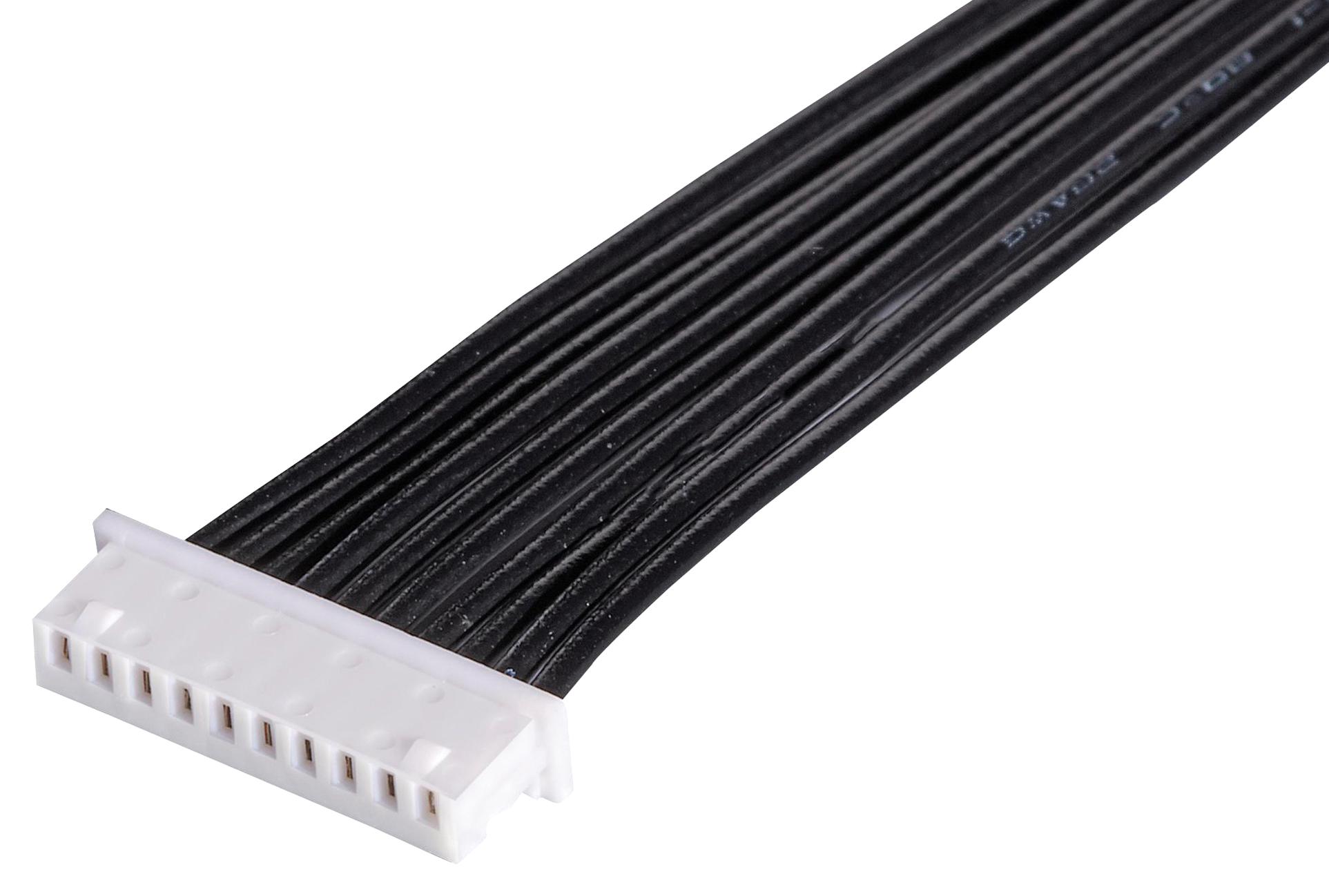

MOLEX 151341003 PicoBlade Cable Assembly
The MOLEX 15134-1003 PicoBlade cable assembly provides a compact and efficient solution for signal transmission in various applications. Designed with a PicoBlade-to-PicoBlade connector configuration, this assembly offers a secure and reliable connection for wire-to-board or wire-to-wire applications. The assembly features a 300mm length and 10 circuits, making it suitable for a range of electronic devices and systems. Constructed with phosphor bronze and polyester materials, and tin plating for both mating and termination interfaces, this cable assembly ensures optimal performance and durability.
MOLEX 151341003 PicoBlade Cable Assembly Specifications:
- product_family: Cable Assemblies
- series: 15134
- application: Signal, Wire-to-Board, Wire-to-Wire
- configuration: Dual Ended
- connectors: Connector to Connector PicoBlade-to-PicoBlade
- overmolded: No
- cable_length: 300.00mm
- circuits_loaded: 10
- color_resin: Natural
- material_metal: Phosphor Bronze
- material_plating_mating: Tin
- material_plating_termination: Tin
- material_resin: Polyester
- net_weight: 5.300/g
- number_of_rows: 1
- packaging_type: Bag
- pitch_mating_interface: 1.25mm
- plating_min_mating: 0.889µm
- plating_min_termination: 0.914µm
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 0.90mm
- wire_size_awg: 28
- wire_cable_type: UL 1061
- current_maximum_per_contact: 1.0A
- voltage_maximum: 125V
- elv_compliance: Not Relevant
- rohs_compliance: Compliant
- reach_svhc_compliance: Not Contained
- halogen_free_status: Not Low-Halogen
- mates_with: PicoBlade Header 53261, 53047, 53398, 53048, PicoBlade Plug Housing 51047
