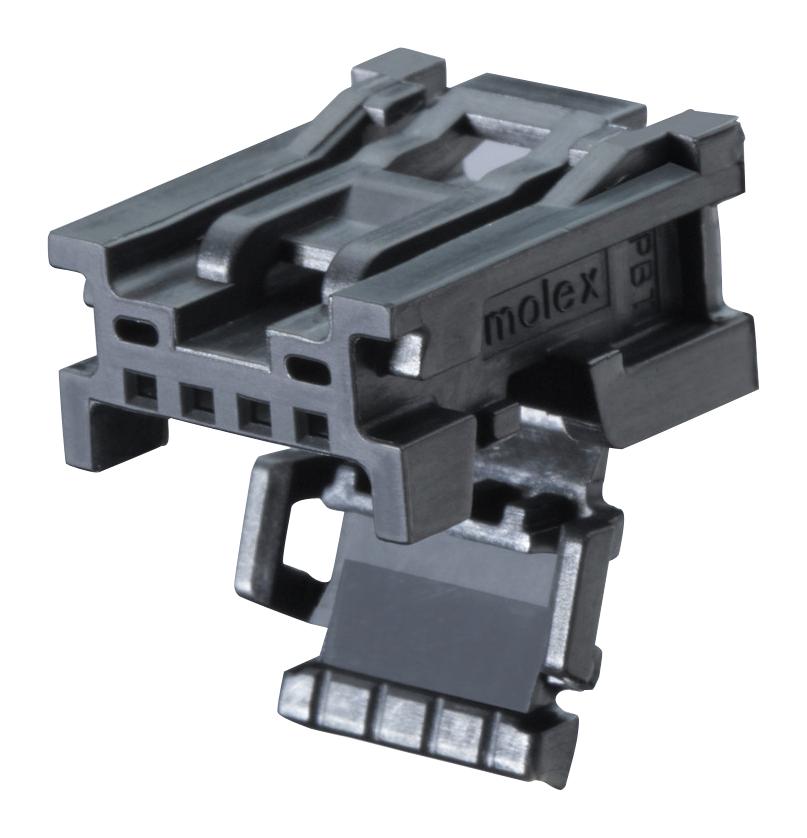

MOLEX 347915180 Mini50 Unsealed Receptacle
The MOLEX 34791-5180 Mini50 Unsealed Receptacle is a versatile connector solution for wire-to-board applications. Designed with 8 circuits and polarization option A, it ensures proper mating alignment. Constructed from durable black PBT resin, this receptacle offers excellent electrical insulation and mechanical strength. It's commonly used in power applications and various industrial equipment where a secure and reliable connection is essential. The receptacle's compact design and easy termination process make it a preferred choice for engineers and manufacturers.
MOLEX 347915180 Mini50 Unsealed Receptacle Specifications:
- overview: Mini50 Connection Systems
- application: Power, Wire-to-Board
- polarization: A
- circuits_maximum: 8
- color_resin: Black
- gender: Receptacle
- glow_wire_capable: No
- keying_to_mating_part: Yes
- lock_to_mating_part: Yes
- material_resin: PBT
- net_weight_g: 1.437
- number_of_rows: 1
- packaging_type: Bag
- panel_mount: No
- pitch_mating_interface_mm: 2.00
- pitch_termination_interface_mm: 2.00
- polarized_to_mating_part: Yes
- stackable: No
- temperature_range_operating_c: -40° to +105°
- eu_elv_compliant: Yes
- eu_rohs: Compliant
- china_rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Low-Halogen
- product_family: Crimp Housings
- upc: 889056224505
- mates_with: Mini50 Vertical Header 34792, Mini50 Right-Angle Through Hole Header 34793, Mini50 Right-Angle Surface Mount Header 34912
- use_with: CTX50 Unsealed Terminals 560023
