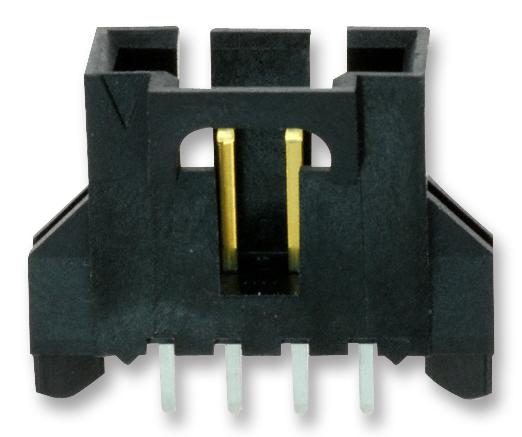

MOLEX 705450005 Signal Header
The 2.54mm Pitch SL Header is a single row, shrouded connector with a 3.05mm pocket, designed for wire-to-board applications. It features press-fit plastic pegs, tin plating, and a durable construction that supports up to 94 mating cycles. Built from high-temperature thermoplastic with brass and phosphor bronze contacts, this vertical orientation connector is rated for 3A current per contact, operates within -40°C to +105°C, and complies with RoHS and UL standards. Ideal for compact electronic assemblies requiring reliable signal connection and environmental compliance.
MOLEX 705450005 Signal Header Specifications:
- Pitch: 2.54mm
- Number of Circuits: 6
- Color - Resin: Black
- Flammability: 94V-0
- Material - Metal: Brass, Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Durability: 94 mating cycles
- Operating Temperature: -40°C to +105°C
- Current per Contact: 3A
- Voltage - Maximum: 250V
- Surface Mount Compatible: No
- Lock to Mating Part: Yes
- Shrouded: Yes
- Stackable: No
- PCB Thickness - Recommended: 1.60mm
- Temperature Range - Operating: -40°C to +105°C
- Insulation Resistance: Not specified
- Agency Certification: UL, CSA
- RoHS Compliant: Yes
Buy the Molex Series SL Signal Connectors: 70545
Get the Molex Series SL Signal Header online today for your electronic assembly needs. This high-quality connector features a 2.54mm pitch, press-fit design, and tin-plated contacts, providing dependable signal connections in compact, high-temperature environments. Its shrouded, vertical orientation supports 6 circuits with up to 94 mating cycles, rated for 3A per contact and operating between -40°C and +105°C. Fully compliant with RoHS and UL standards, this durable connector guarantees safety, longevity, and environmental compliance for your manufacturing projects.
Order your Molex Series SL Header today and ensure reliable, compact wire-to-board connections for your electronic projects.
