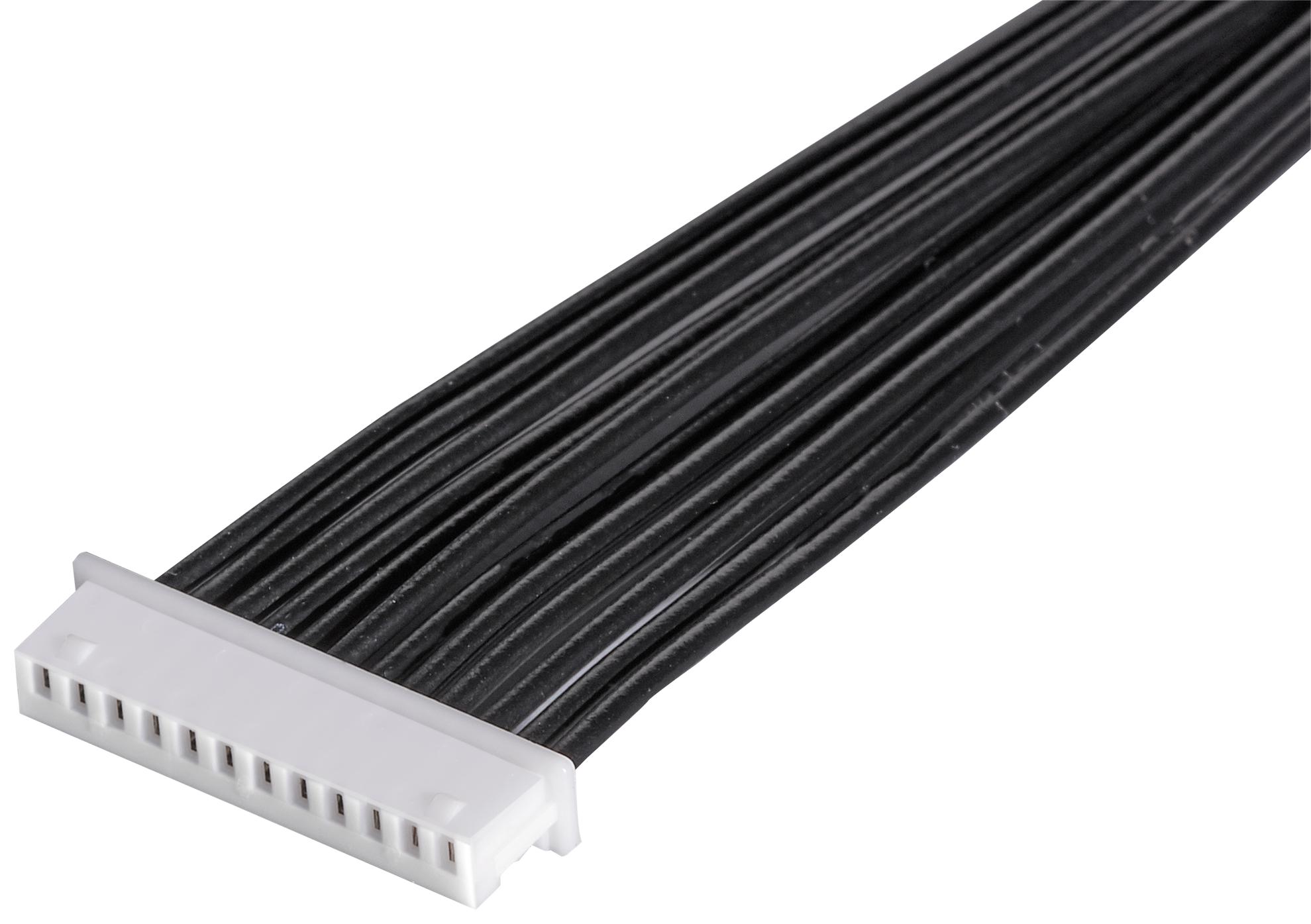

MOLEX 151341206 PicoBlade OTS Cable Assembly
The MOLEX 15134-1206 PicoBlade OTS Cable Assembly provides a pre-terminated solution for connecting PicoBlade connectors. This assembly features a 600mm cable length, 12 circuits, and a natural resin color. Constructed with phosphor bronze and tin-plated terminals, it offers reliable electrical connectivity and is designed for applications where a pre-configured cable assembly simplifies integration. It is RoHS compliant and suitable for various industrial and commercial applications.
MOLEX 151341206 PicoBlade OTS Cable Assembly Specifications:
- Series: 15134
- Assembly Configuration: Dual Ended
- Connectors: PicoBlade-to-PicoBlade
- Cable Length: 600.00mm
- Circuits (Loaded): 12
- Color - Resin: Natural
- Gender: Female-Female
- Lock to Mating Part: Yes
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester
- Net Weight: 15.000/g
- Pitch - Mating Interface: 1.25mm
- Plating min - Mating: 0.889µm
- Plating min - Termination: 0.914µm
- Wire Insulation Diameter: 0.90mm
- Wire Size AWG: 28
- Wire/Cable Type: UL 1061
- Current - Maximum per Contact: 1.0A
- Voltage - Maximum: 125V
- Mates With: 53261, 53047, 53398, 53048
Buy the 15134-1206 MOLEX PicoBlade OTS Cable Assembly | myMectronic
Purchase the MOLEX 15134-1206 PicoBlade OTS Cable Assembly securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 151341206?
You can click on the BUY or RFQ button to purchase 151341206 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 151341206?
You can download the 151341206 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 151341206?
MOLEX
