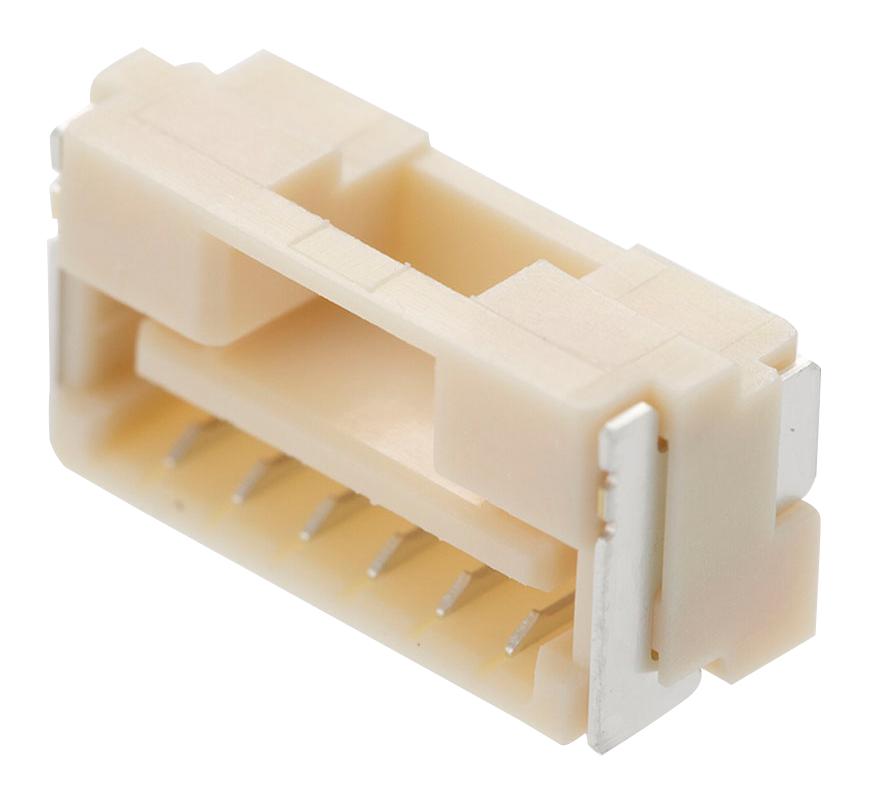

MOLEX 5023861270 Wire-to-Board Receptacle
The 5023861270 is a high-quality wire-to-board receptacle designed for reliable electrical connections in electronic assemblies. It features a 12-circuit configuration with a 1.25 mm pitch, rated for 1.0A current and 50V AC/DC. Made from high-temperature thermoplastic with copper alloy contacts plated in tin, it offers durability for up to 30 mating cycles. Suitable for surface mount applications, this connector is RoHS and REACH compliant, ensuring environmentally friendly design and performance across a temperature range of -40°C to +105°C.
MOLEX 5023861270 Wire-to-Board Receptacle Specifications:
- Number of Circuits: 12
- Maximum Circuits: 12
- Color of Resin: Natural
- Durability: Up to 30 mating cycles
- Glow-Wire Capable: No
- Guide to Mating Part: Yes
- Lock to Mating Part: Yes
- Mated Height: 5.55 mm
- Material - Metal: Copper Alloy
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Net Weight: 26.26 g
- Number of Rows: 1
- Orientation: Right Angle
- PCB Locator: Yes
- PCB Retention: Yes
- Packaging Type: Embossed Tape on Reel
- Pitch - Mating Interface: 1.25 mm
- Pitch - Termination Interface: 1.25 mm
- Plating min - Mating: 1.016 μm
- Plating min - Termination: 1.016 μm
- Polarized to Mating Part: Yes
- Polarized to PCB: No
- Stackable: No
- Surface Mount Compatible (SMC): Yes
- Temperature Range - Operating: -40°C to +105°C
- Termination Interface: Style: Surface Mount
- Current - Maximum per Contact: 1.0A
- Voltage - Maximum: 50V AC/DC
- Certifications: RoHS, REACH compliant
- Agency Certification: UL
Buy the Molex Series CLIK-Mate Connectors: 5023861270
Discover the reliability of the Molex wire-to-board receptacle, featuring 12 circuits with 1.25 mm pitch, rated for 1A and 50V. Made from high-temperature thermoplastic with tin-plated copper alloy contacts, it offers up to 30 mating cycles for durable performance. Designed for surface mount applications, it’s RoHS and REACH compliant, operating effectively within -40°C to +105°C. Ideal for electronic assemblies requiring secure, environmentally friendly connections with easy installation and high durability benefits.
Order your Molex Series CLIK-Mate 5023861270 connector today and ensure reliable, durable electrical connections for your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 5023861270?
You can click on the BUY or RFQ button to purchase 5023861270 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5023861270?
You can download the 5023861270 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5023861270?
MOLEX
