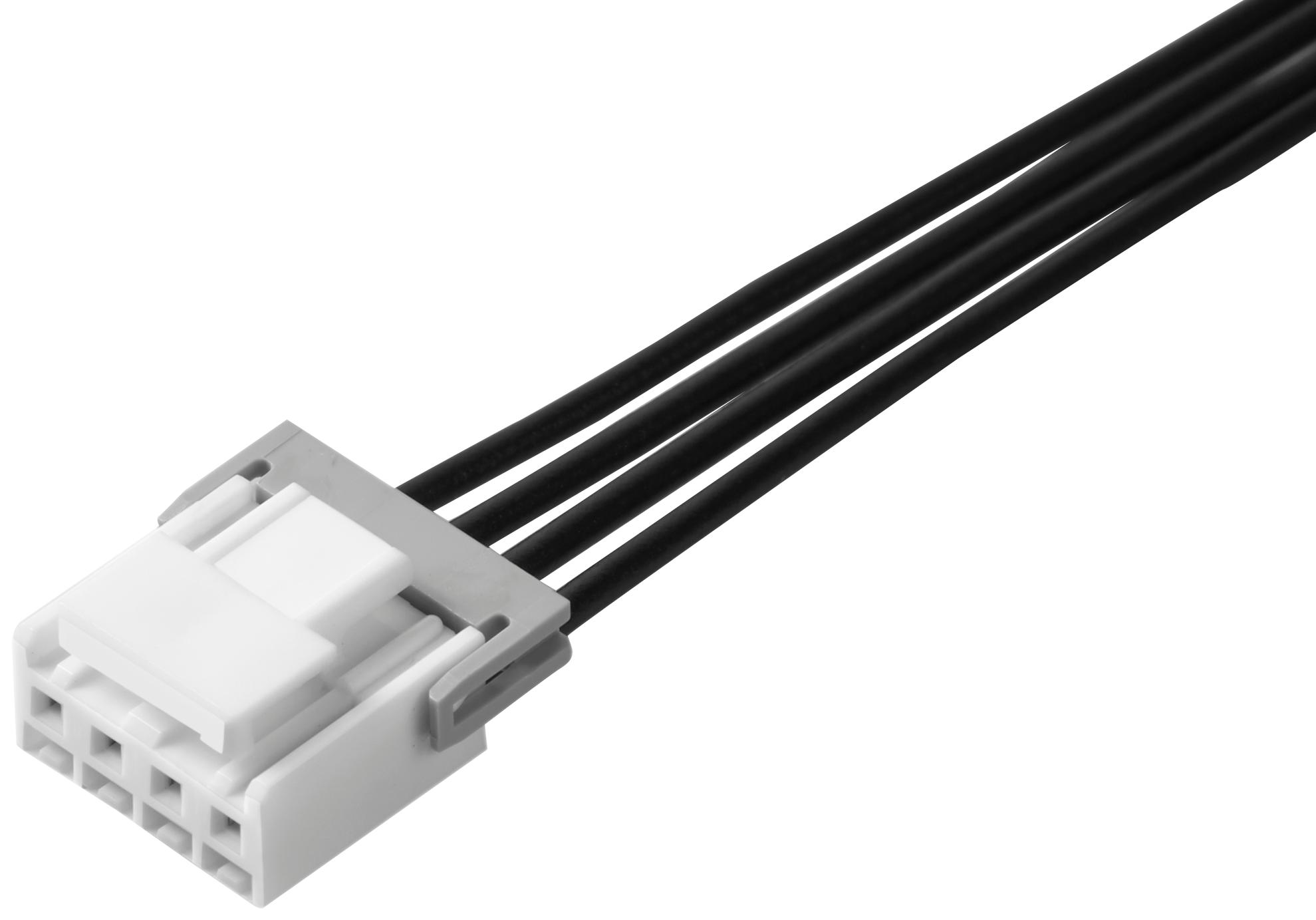

MOLEX 151370403 Mini-Lock Wire-to-Board Connector
The MOLEX 15137-0403 is a Mini-Lock wire-to-board connector assembly, part of the 15137 series. This connector offers a robust and reliable connection solution for signal transmission in wire-to-board applications. It is designed with a 2.50mm pitch and a female-female configuration, providing a secure and efficient mating interface. The assembly includes a 300mm cable length and features a natural resin color. It is RoHS compliant and suitable for a range of industrial and commercial applications requiring dependable wire-to-board connectivity.
MOLEX 151370403 Mini-Lock Wire-to-Board Connector Specifications:
- overview: Mini-Lock Wire-to-Board Connector System
- description: Mini-Lock-to-Mini-Lock Off-the-Shelf (OTS) Cable Assembly
- pitch_mating_interface: 2.50mm
- circuits_loaded: 4
- cable_length: 300.00mm
- gender: Female-Female
- material_metal: Copper Alloy
- material_plating_mating: Matte Tin (0.889µm)
- material_plating_termination: Matte Tin
- material_resin: Polyester
- voltage_maximum: 250V AC (RMS)/DC
- wire_size_awg: 22
- wire_cable_type: UL 1061
- termination_interface_style: Crimp or Compression
- single_ended: No
- net_weight: 8.270/g
- packaging_type: Bag
- elv_compliance: Not Relevant
- rohs_compliance: Compliant
- reach_svhc_compliance: Not Contained Per ED/61/2018
- halogen_free_status: Not Low-Halogen
- mates_with: 53375, 53426
Buy the 15137-0403 MOLEX Mini-Lock Wire-to-Board Connector | myMectronic
Purchase the MOLEX 15137-0403 Mini-Lock Wire-to-Board Connector securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 151370403?
You can click on the BUY or RFQ button to purchase 151370403 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 151370403?
You can download the 151370403 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 151370403?
MOLEX
