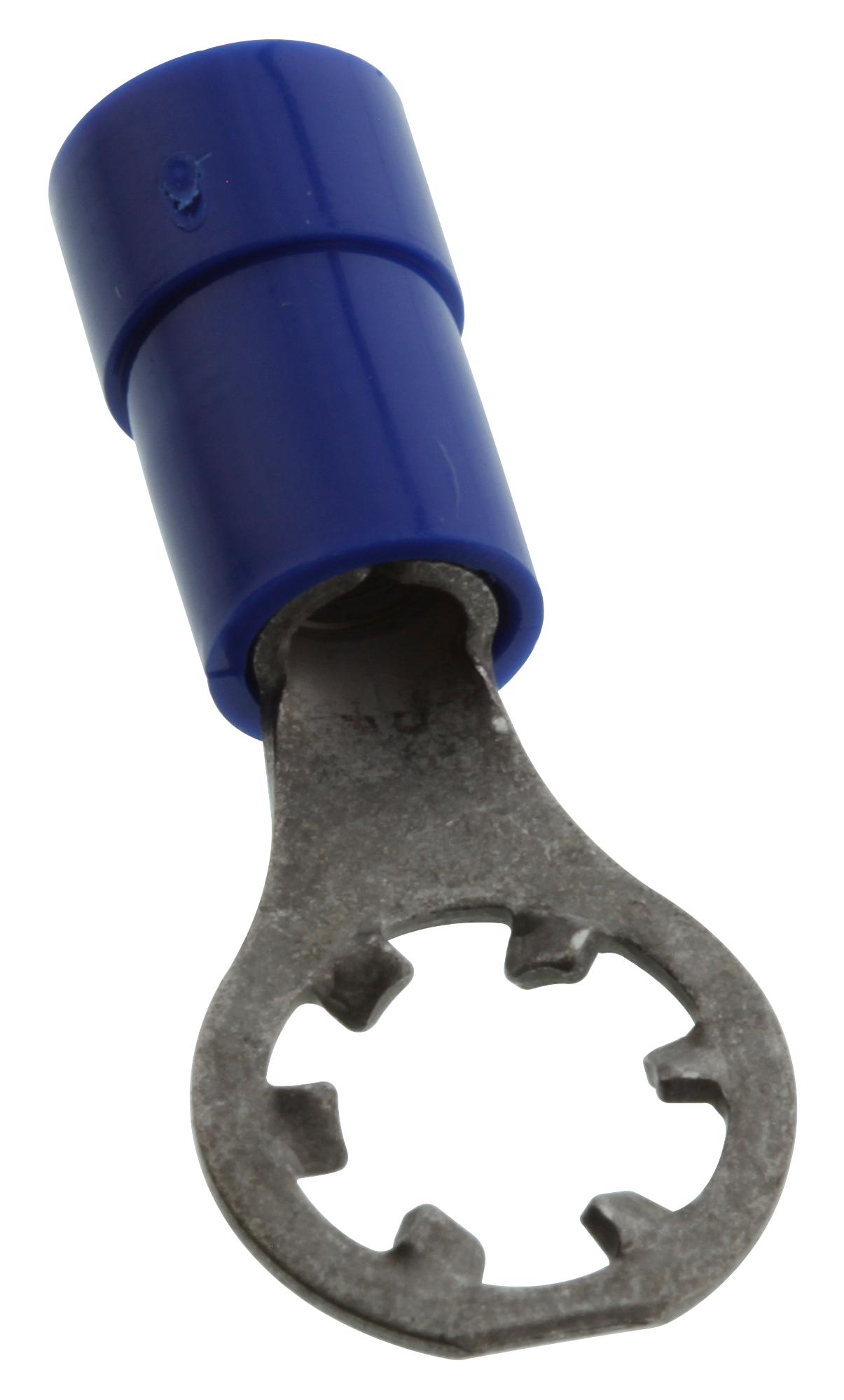

MOLEX 190750017 InsulKrimp Ring Tongue Terminal
The MOLEX 19075-0017 InsulKrimp Star Ring Tongue Terminal is a solderless termination solution for connecting wires to studs. Designed for 14-16 AWG wire and a 10 (M5) stud size, this terminal provides a secure and reliable connection in various industrial applications. Its InsulKrimp design ensures a consistent and high-quality crimp, while the PVC insulation offers protection and durability. This terminal is part of the 19075 series and is RoHS compliant, making it suitable for environmentally conscious designs.
MOLEX 190750017 InsulKrimp Ring Tongue Terminal Specifications:
- Agency Certification: CSA LR18689, UL E32244
- EU ELV: Not Relevant
- Product Family: Ring and Spade Terminals
- EU RoHS: Not Reviewed
- Series: 19075
- Crimp Quality Equipment: Yes
- REACH SVHC: Not Contained Per ED/61/2018 (27 June 2018)
- Halogen-Free: Low-Halogen
- Flammability: 94V-0
- Insulation: PVC
- RoHS Phthalates: Not Contained
- Material - Plating: Tin
- Net Weight: 0.679/g
- Stud Size: 10 (M5)
- Termination Interface: Crimp or Compression
- Wire Insulation Diameter: 4.45mm
- Wire Size: 14, 16 AWG
- Engineering Number: SRB-229-10X
- Product Name: InsulKrimp
- UPC: 800753079694
- Barrel Type: Closed
- Color: Resin Natural
- China ROHS: Green Image
- Packaging Type: Bag
Buy the 19075-0017 MOLEX InsulKrimp Ring Tongue Terminal | myMectronic
Purchase the MOLEX 19075-0017 InsulKrimp Ring Tongue Terminal securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 190750017?
You can click on the BUY or RFQ button to purchase 190750017 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 190750017?
You can download the 190750017 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 190750017?
MOLEX
