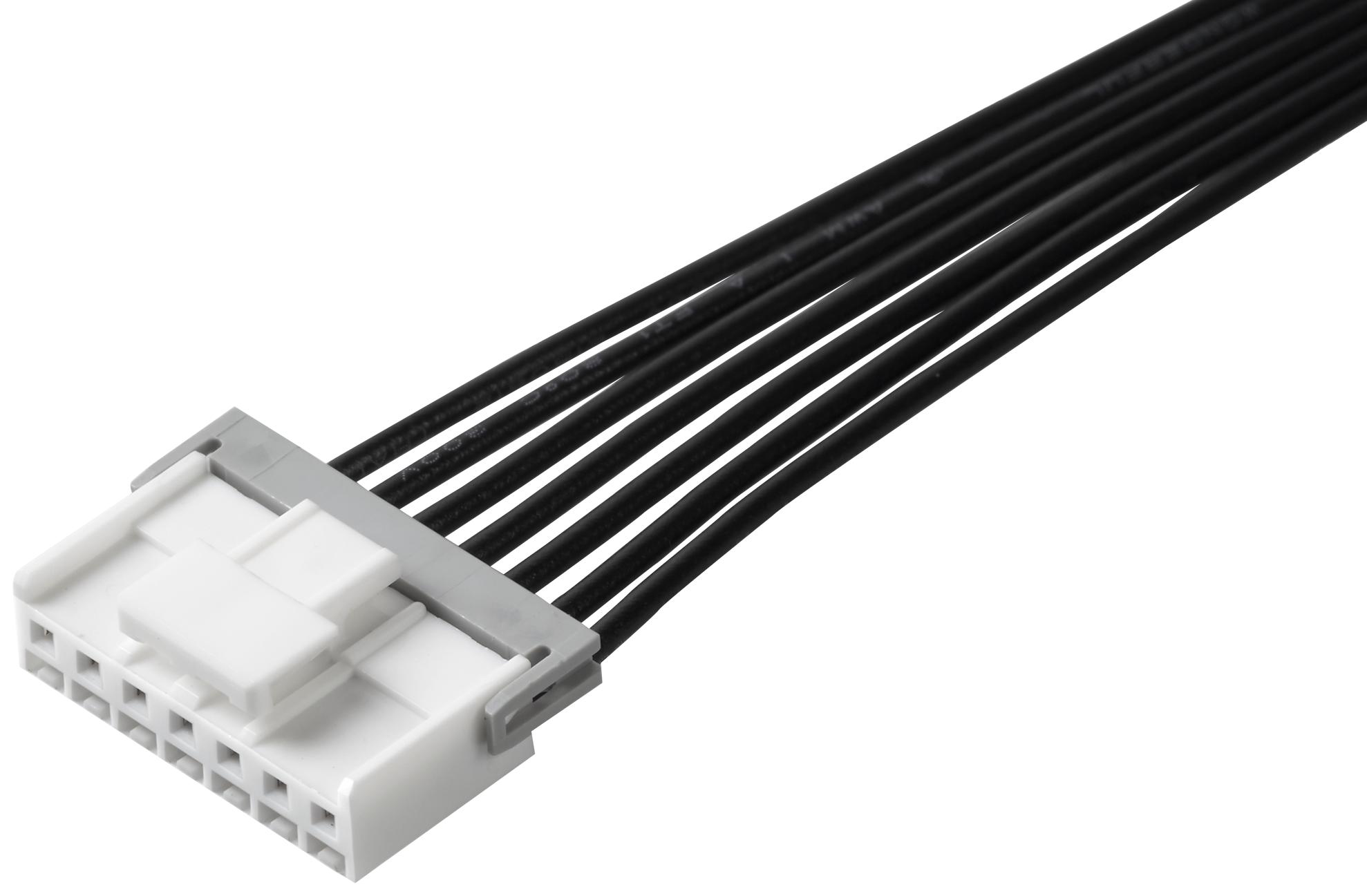

MOLEX 151370702 Mini-Lock Wire-to-Board Connector
The MOLEX 15137-0702 Mini-Lock wire-to-board connector assembly provides a reliable connection solution for signal transmission in diverse industrial settings. This connector features a compact design with a 2.50mm pitch and a female-female configuration, making it ideal for connecting two female connectors. The assembly includes a 150mm cable length and is constructed with copper alloy and polyester materials, ensuring durability and performance. It is RoHS compliant and suitable for applications requiring a robust and secure wire-to-board connection.
MOLEX 151370702 Mini-Lock Wire-to-Board Connector Specifications:
- overview: Mini-Lock Wire-to-Board Connector System
- product_family: Cable Assemblies
- application: Signal, Wire-to-Board Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Mini-Lock-to-Mini-Lock
- cable_length: 150.00mm
- circuits_loaded: 7
- color_resin: Natural
- material_metal: Copper Alloy
- plating_mating: Matte Tin (0.889µm min)
- plating_termination: Matte Tin
- resin_material: Polyester
- net_weight: 8.600/g
- packaging_type: Bag
- pitch_mating_interface: 2.50mm
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_size_awg: 22
- wire_cable_type: UL 1061
- voltage_maximum: 250V AC (RMS)/DC
- sales_drawing: 151370700-000
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained Per ED/61/2018
- halogen_free_status: Not Low-Halogen
- mates_with: 53375, 53426
