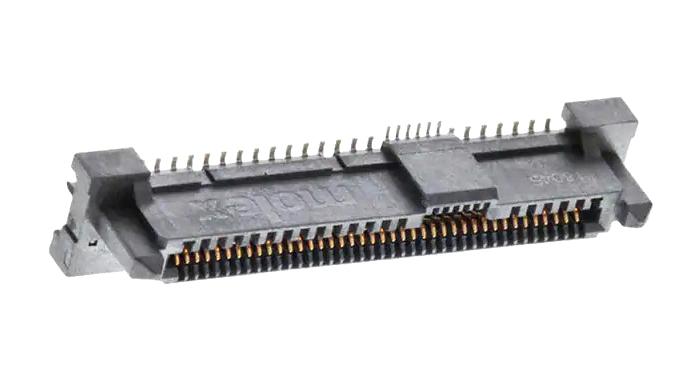

MOLEX 787580001 U.2 Connector
This U.2 (SFF-8639) connector is a surface-mount, right-angle plug designed for high-speed serial attached SCSI applications. Featuring 68 circuits with signal and power pins, it offers a reliable, solder-tab design, embedded cap, and RoHS compliance. Constructed with copper alloy and gold plating for durability and optimal connectivity. Suitable for board-to-board connections, it supports operating temperatures from 0°C to +55°C, with reflow solder process capability and a maximum current of 1.5A at 30V. Ideal for data centers and high-performance computing systems requiring robust and secure connections.
MOLEX 787580001 U.2 Connector Specifications:
- Circuits: 68
- Signal Circuits: 53
- Power Circuits: 15
- Signal Pitch: 0.80mm and 1.27mm
- Power Pitch: 1.27mm
- Color - Resin: Black
- Flammability: 94V-0
- Material - Metal: Copper Alloy
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: Liquid Crystal Polymer
- Weight: 1.762/g
- Orientation: Right Angle
- PCB Thickness - Recommended: 0.82mm
- Maximum Current per Contact: 1.5A
- Maximum Voltage: 30V
- Operating Temperature Range: 0°C to +55°C
- Packaging: Embossed Tape on Reel
- Surface Mount Compatible: No
- Certifications: CSA, UL, EU RoHS, China RoHS, Halogen-Free, Low-Halogen
Buy the Molex 787580001 – Reliable U.2 SFF-8639 Connector for Industrial Applications
Enhance your data transfer capabilities with the Molex U.2 connector featuring 68 circuits, surface mount right-angle design, gold plating, RoHS compliance, and high operating temperature range. Engineered for reliability in demanding industrial environments, this connector offers secure connection and durability with PCB compatibility, quick reflow solder process, and robust construction. Perfect for high-performance computing and data storage solutions requiring dependable high-speed connections, ensuring your system's efficiency and longevity.
Buy Molex 787580001 now and experience unmatched reliability and performance in high-speed data and power transfer systems.
