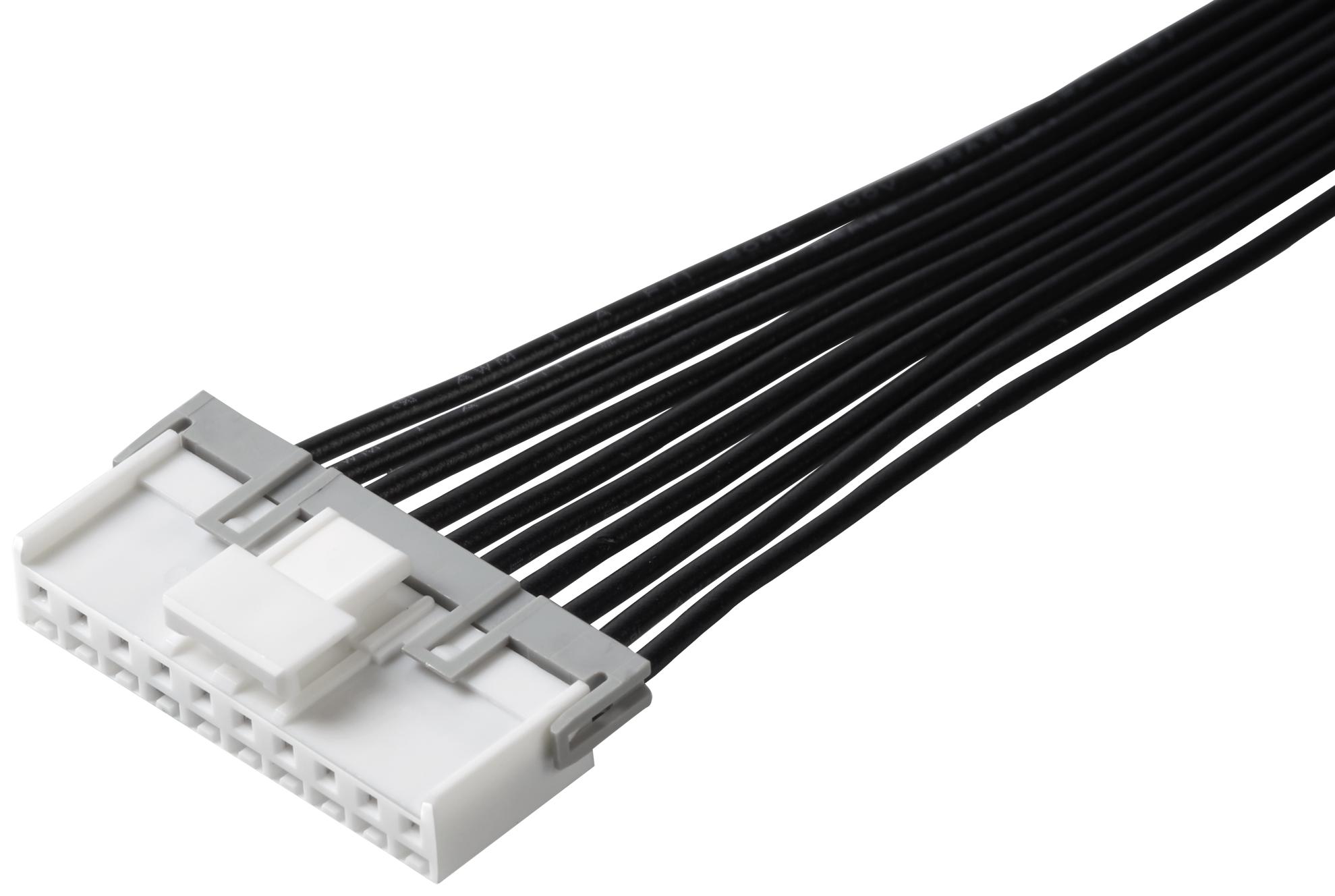

MOLEX 151371003 Mini-Lock Wire-to-Board Connector
The MOLEX 15137-1003 is a Mini-Lock wire-to-board connector assembly, part of the 15137 series. This connector offers a robust and reliable connection solution for signal transmission in wire-to-board applications. It features a 2.50mm pitch, a female-female gender configuration, and is designed for single-row applications. The assembly includes overmolding for enhanced durability and is RoHS compliant. It is commonly used in applications requiring a compact and secure connection between wires and printed circuit boards.
MOLEX 151371003 Mini-Lock Wire-to-Board Connector Specifications:
- overview: Mini-Lock Wire-to-Board Connector System
- description: Mini-Lock-to-Mini-Lock Off-the-Shelf (OTS) Cable Assembly
- pitch_mating_interface: 2.50mm
- circuits_loaded: 10
- cable_length: 300.00mm
- material_metal: Copper Alloy
- material_plating_mating: Matte Tin (0.889µm)
- material_plating_termination: Matte Tin
- material_resin: Polyester
- voltage_maximum: 250V AC (RMS)/DC
- wire_size_awg: 22
- wire_cable_type: UL 1061
- single_ended: No
- termination_interface_style: Crimp or Compression
- color_resin: Natural
- net_weight: 19.390/g
- packaging_type: Bag
- elv_compliance: Not Relevant
- rohs_compliance: Compliant
- reach_svhc_compliance: Not Contained Per ED/61/2018
- halogen_free_status: Not Low-Halogen
- mates_with: 53375, 53426
- drawing_number: 151371003-000
Buy the 15137-1003 MOLEX Mini-Lock Wire-to-Board Connector | myMectronic
Purchase the MOLEX 15137-1003 Mini-Lock Wire-to-Board Connector securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 151371003?
You can click on the BUY or RFQ button to purchase 151371003 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 151371003?
You can download the 151371003 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 151371003?
MOLEX
